Ground Protection
Matting Manufacturer
HDPE, UHMWPE and composite roadway mats for temporary access and ground protection.
Three Ground Protection Mat Systems
HDPE Ground Protection Mats
4×8 ft · portable ground protection
UHMWPE Heavy Duty Ground Protection Mats
25-60 mm · heavy equipment access
Composite Ground Protection Mats
Interlocking panels · soft ground & temporary roads
Ground Protection Mats
HDPE Ground Protection Mats
HDPE Ground Protection Mats
Size: 1220 × 2440 × 12.7 mm
Load: 50 t static

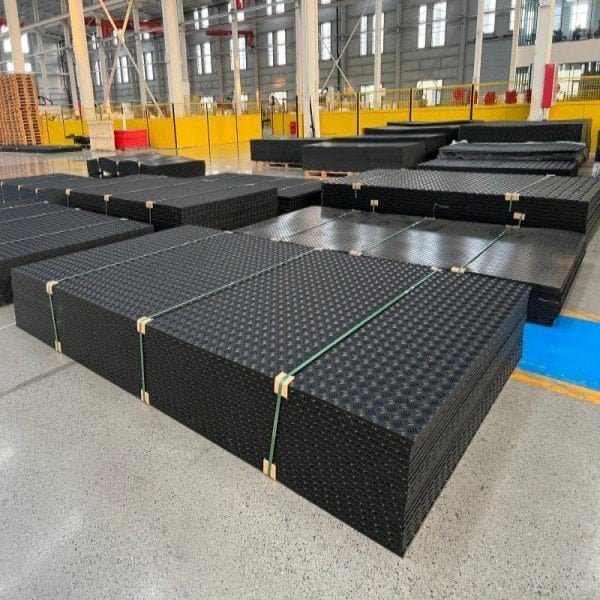

4x8 Ground Protection Mats
Size: 4 × 8 ft (1220 × 2440 mm)
Thickness: 12.7 mm
Lightweight Ground Protection Mats
Size: 1200 × 2400 × 12.7 mm
Use: portable temporary access

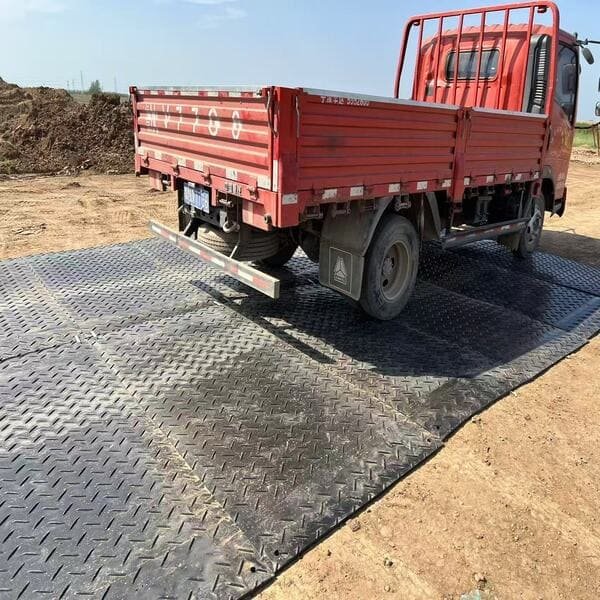

Construction Ground Mats
Use: construction site access
Load: 50 t static
Double Sided 4x8 Ground Protection Mats
Size: 4 × 8 ft (1220 × 2440 mm)
Surface: double-sided tread
Event Management Ground Protection Mats
Use: events / temporary access routes
Material: reusable HDPE
UHMWPE Heavy Duty Ground Protection Mats
UHMWPE Heavy Duty Ground Protection Mats
Size: 2000 × 5800 × 25 mm
Load: 120 t static

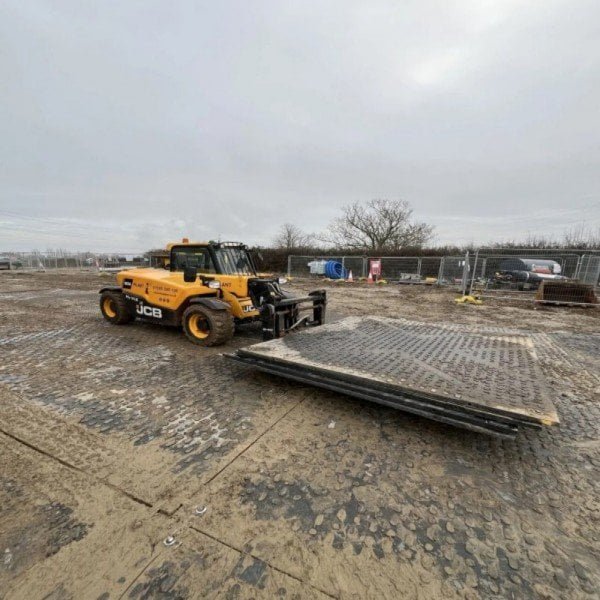

Mud Mats for Heavy Equipment
Ground: mud / soft jobsite conditions
Load: 80 t static
Heavy Duty Access Mats
Use: heavy-duty temporary access
Load: 160 t static

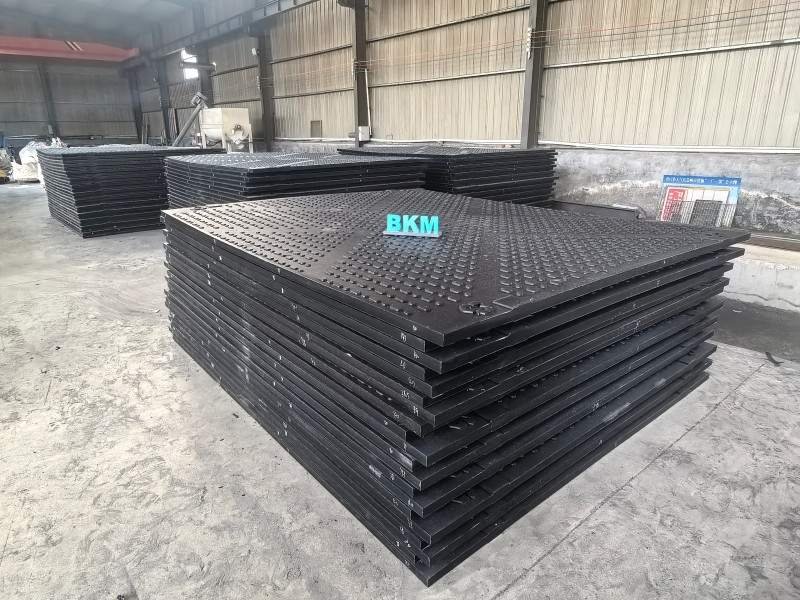

Heavy Equipment Road Mats
Size: 2000 × 4000 × 38 mm
Load: 160 t static

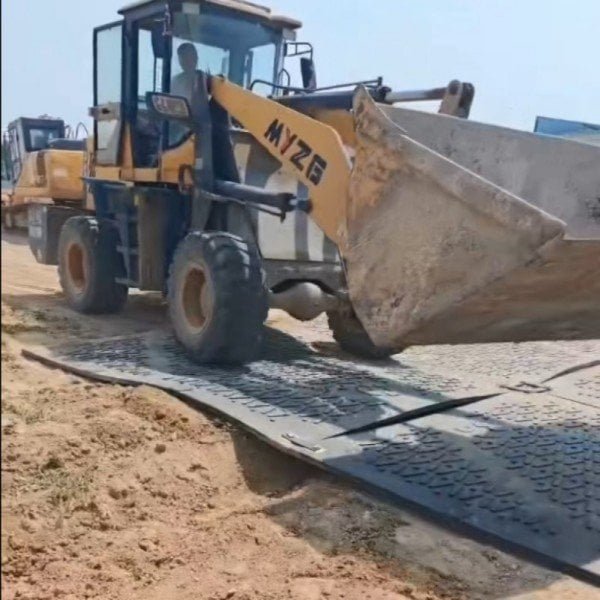

Temporary Roadway Mats
Size: 2000 × 4500 × 38 mm
Load: 160 t static
Skid Steer Ground Protection Mats
Use: skid steers / compact loaders
Load: 120 t static
Composite Ground Protection Mats

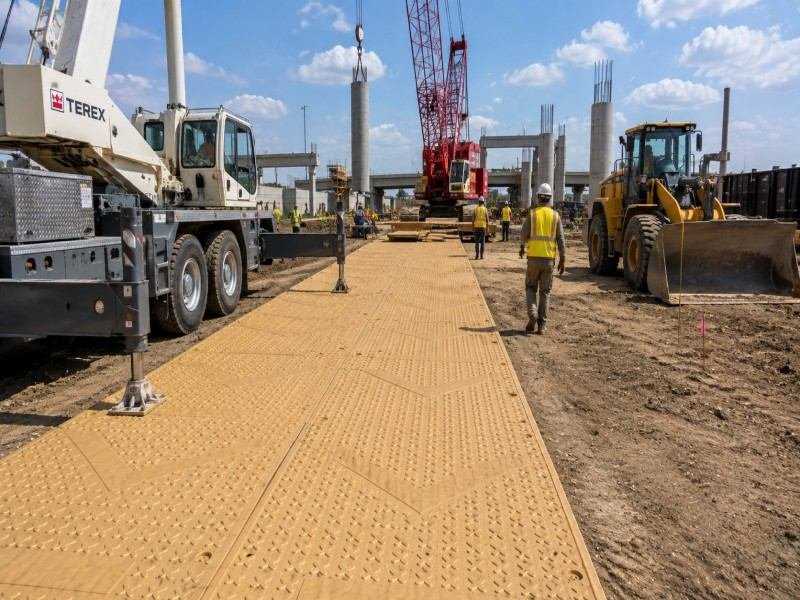

Composite Construction Mats
Use: heavy construction access
Layout: roadway / work pad
Composite Ground Protection Mats
Size: 4160 × 2240 × 102 mm
Weight: 465 kg

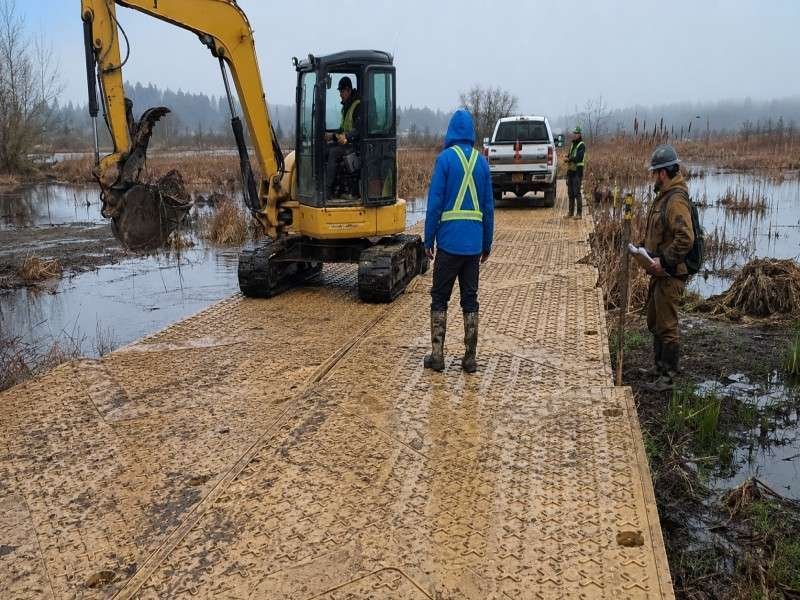

Construction Mud Mats
Ground: mud / soft construction sites
Use: temporary construction access
Interlocking Composite Mats
System: interlocking composite panels
Use: temporary access roadways

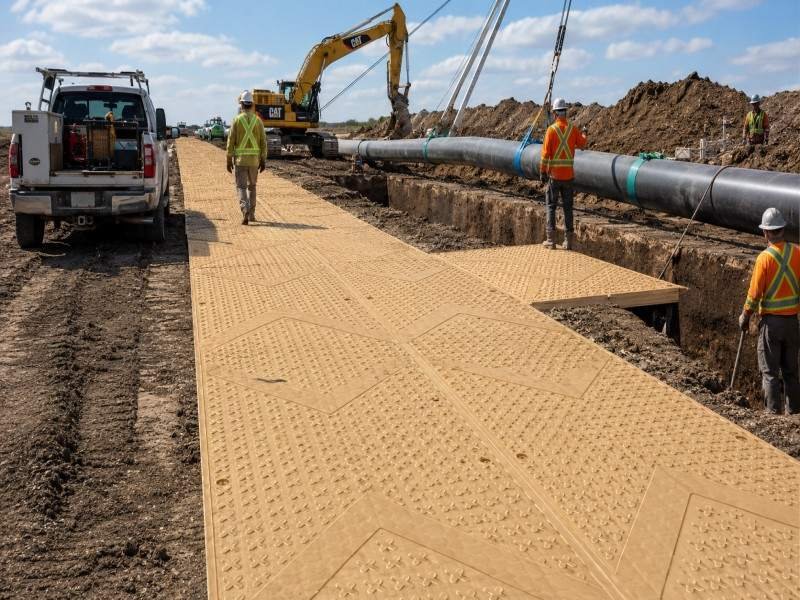

Pipeline Access Mats
Use: pipeline construction access
Layout: linear access corridor
8x14 Composite Mats
Size class: approx. 8 × 14 ft
Use: temporary roadway systems
Load figures are reference values. Final selection depends on site conditions and installation.
Ground Protection Mat Specifications
| No | Size (ft & in) | Size (mm) | Thickness with Texture (mm) | Weight (kg) | Effective Area (m²) | Dynamic Load (Vehicles / Machinery) (ton) |
Static Load (Equipment / Outriggers) (ton) |
Typical Application |
|---|---|---|---|---|---|---|---|---|
| 1 | 4' × 8' × 1/2" | 1220 × 2440 × 12.7 | 17.7 (one side) | 38 | 2.98 | 20-30 | 50 | Small vehicles, light equipment |
| 2 | 4' × 8' × 1/2" | 1220 × 2440 × 12.7 | 22.7 (two sides) | 41 | 2.98 | 20-30 | 50 | Small vehicles, light equipment |
| 3 | 3.94' × 7.87' × 1/2" | 1200 × 2400 × 12.7 | 17.7 (one side) | 37 | 2.88 | 20-30 | 50 | Small vehicles, light equipment |
| 4 | 3.28' × 6.56' × 1/2" | 1000 × 2000 × 12.7 | 17.7 (one side) | 26 | 2.00 | 20-30 | 50 | Small vehicles, light equipment |
| 5 | 3.28' × 6.56' × 0.39" | 1000 × 2000 × 10 | 20 (two sides) | 22 | 2.00 | 20-30 | 50 | Small vehicles, light equipment |
| 6 | 3.61' × 9.51' × 1/2" | 1100 × 2900 × 12.7 | 22.7 (two sides) | 44 | 3.20 | 20-30 | 50 | Small vehicles, light equipment |
| 7 | 4.92' × 9.84' × 0.59" | 1500 × 3000 × 15 | 25 (two sides) | 74 | 4.50 | 30-40 | 60 | Medium trucks, excavators |
| 8 | 6.56' × 19.03' × 0.98" | 2000 × 5800 × 25 | 35 (two sides) | 302 | 11.60 | 60-80 | 120 | Heavy trucks, mixer trucks |
| 9 | 6.56' × 19.36' × 1.1" | 2000 × 5900 × 28 | 38 (two sides) | 345 | 11.80 | 40-50 | 80 | Heavy trucks, mixer trucks |
| 10 | 8.20' × 9.84' × 1.5" | 2500 × 3000 × 38 | 48 (two sides) | 293 | 7.50 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 11 | 6.56' × 13.12' × 1.5" | 2000 × 4000 × 38 | 48 (two sides) | 312 | 8.00 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 12 | 6.56' × 14.76' × 1.5" | 2000 × 4500 × 38 | 48 (two sides) | 351 | 9.00 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 13 | 8.20' × 9.84' × 0.98" | 2500 × 3000 × 25 | 35 (two sides) | 195 | 7.50 | 60-80 | 120 | Heavy engineering, cranes |
| 14 | 8.37' × 9.84' × 1.5" | 2550 × 3000 × 38 | 48 (two sides) | 300 | 7.65 | 60-80 | 120 | Heavy engineering, cranes |
| 15 | 8.37' × 9.84' × 1.6" | 2550 × 3000 × 40 | 50 (two sides) | 315 | 7.65 | 60-80 | 120 | Heavy engineering, cranes |
| 16 | 6.56' × 6.56' × 1.18" | 2000 × 2000 × 30 | 40 (two sides) | 124 | 4.00 | 60-80 | 120 | Heavy engineering, cranes |
| 17 | 3.28' × 6.56' × 1.18" | 1000 × 2000 × 30 | 40 (two sides) | 62 | 2.00 | 60-80 | 120 | Heavy engineering, cranes |
| 18 | 6.56' × 6.56' × 2" | 2000 × 2000 × 50 | 60 (two sides) | 204 | 4.00 | 100-150 | 200+ | Ultra heavy machinery, crawler equipment |
| 19 | 6.56' × 16.40' × 2.36" | 2000 × 5000 × 60 | 70 (two sides) | 610 | 10.00 | 150-220 | 300+ | Extreme loads, long-term use |
Customization & OEM
Size & Thickness
- ✓ Custom length, width and thickness
- ✓ Radius, chamfered or ramp edges
- ✓ Project-specific dimensions
Surface & Branding
- ✓ Traction or smooth surface
- ✓ Custom color
- ✓ Logo embossing or engraving
Hardware & Connections
- ✓ Custom holes and handles
- ✓ Connector options
- ✓ Hardware inserts or forklift slots
OEM & ODM Available
Custom size, color, logo, packaging and project-specific design.
Applications
Built for Temporary Access

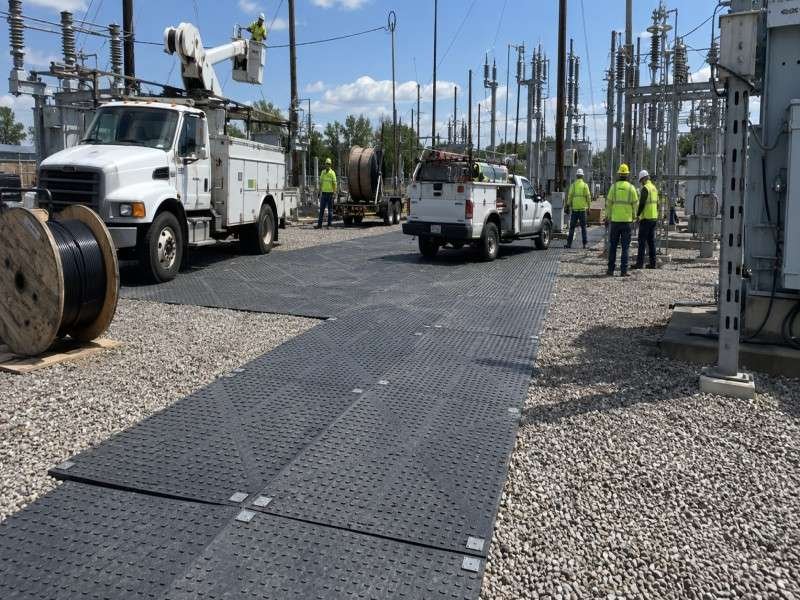

Oil & Gas

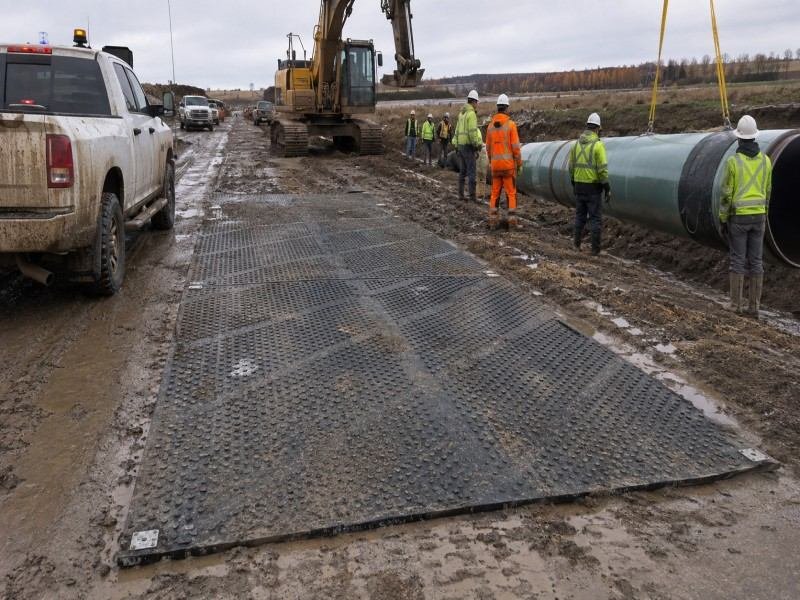

Pipeline

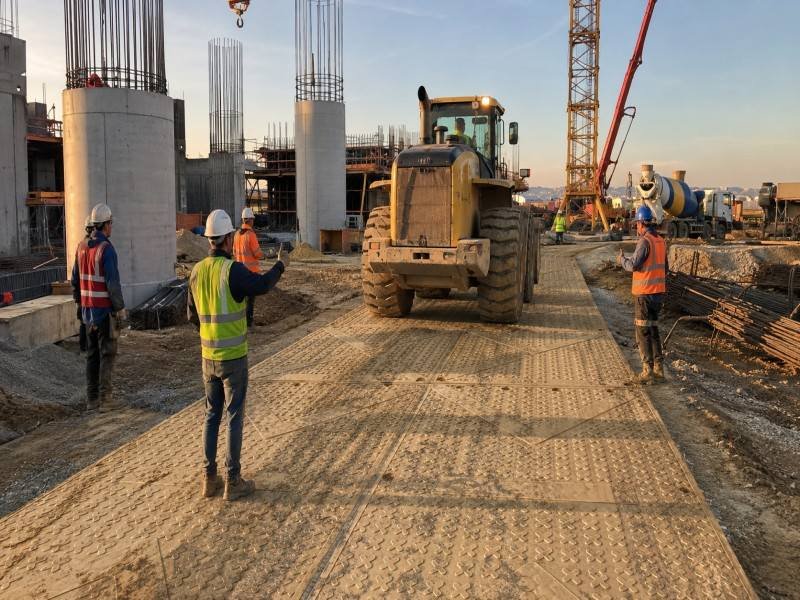

Utility & Power
Construction
Wetlands & Sensitive Ground

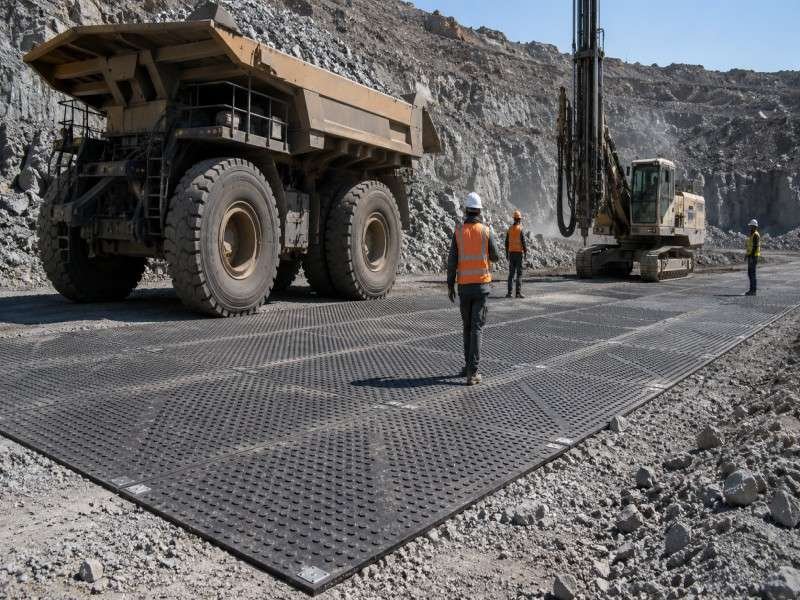

Mining & Heavy Industry
Need help choosing a mat?
Send the ground condition, equipment and quantity.
Trusted Worldwide
20+ Years of Excellence
Impact-Resistant Engineering Plastics: Tough, Standardized
Our HDPE and UHMWPE products support temporary access and ground protection applications. Choose the material, mat dimensions and thickness to suit the ground conditions, equipment loads and installation layout. Load ratings depend on the specified mat and operating conditions.
-
Exceptional Wear Resistance
We surpass the performance of carbon steel in terms of abrasion. In sliding resistance and sand-slurry abrasion resistance, UHMWPE outperforms, lowering maintenance downtimes for sliding elements.
-
Custom Milling and Extrusion Services Available
Not only do we stock standard sheets, but we provide customized CNC milling and custom colorization options, specific perforations, and mechanical joints. Complete OEM/ODM technical services are included.
-
Global Export Experience
Providing products to industrial customers in North America, Europe, Australia, and the Middle East regions.
-
Quality-Certified Manufacturing
Quality control documentation is based on materials, where the batches of polymer resins undergo FTIR analysis and dimensional control before packaging.
BKM Factory · Qingdao, China
Manufacturing & Quality Control
Factory Production
Production & Testing
Ground Protection Mat Testing
See how BKM evaluates ground protection mats for demanding site and vehicle applications.
BKM Factory Introduction
An overview of BKM manufacturing, production capability and engineering plastics processing.
Surface Texture Embossing
Surface texture processing creates traction patterns for vehicle and pedestrian access.
Ground Protection Mat Cutting & Trimming
Cutting and edge-finishing processes prepare mats for dimensional and application requirements.
Rigorous Quality Control at Every Stage
Every ground protection mat we manufacture passes through a multi-stage quality control process before shipment. Our commitment to quality is backed by ISO 9001 certification and supported by in-house testing equipment.
Raw Material Inspection
Virgin HDPE and UHMWPE resin certified for grade, MFI, and purity before entering production.
In-Process Dimensional Check
Continuous monitoring of thickness, width, and flatness during extrusion and pressing.
Load & Impact Testing
Samples from each production batch tested for load-bearing capacity and drop-impact resistance.
Surface Quality Inspection
Visual and tactile inspection of anti-slip texture, surface finish, and color consistency.
Hardware & Connection Testing
Connecting pins, loops, and handles tested for pull-out strength and cycle durability.
Pre-Shipment Final Inspection
Full dimensional check, quantity count, and photographic record provided with every order.
Serving Global Industrial Markets
BKM maintains active export operations to more than 60 countries, with established distribution networks and long-term partnerships across all major industrial markets.
Proven in the Field
Our ground protection mats have been deployed on hundreds of projects across 50+ countries. Here is what our customers say.

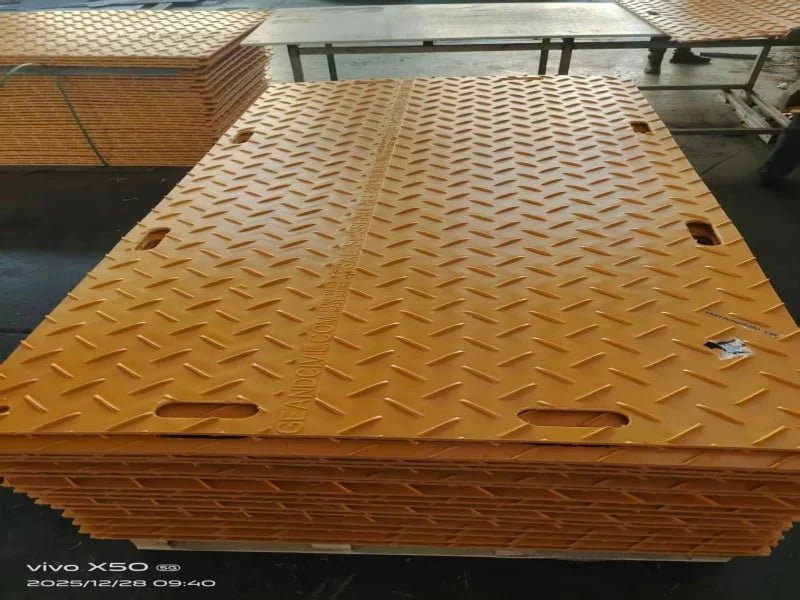

An Alternative to Steel Plates: BKM HDPE Mats for a Construction Customer in Indonesia
Before Chinese New Year in 2025, an Indonesian construction customer approached BKM about a muddy access problem. The site needed a practical...
Read Full Case Study
Access Without Overlooking Finished Surfaces: BKM HDPE Mats for a Vietnamese Contractor
Our customer in Vietnam had unfinished access ground beside areas that were already complete. Their industrial park work was progressing in phases,...
Read Full Case Study

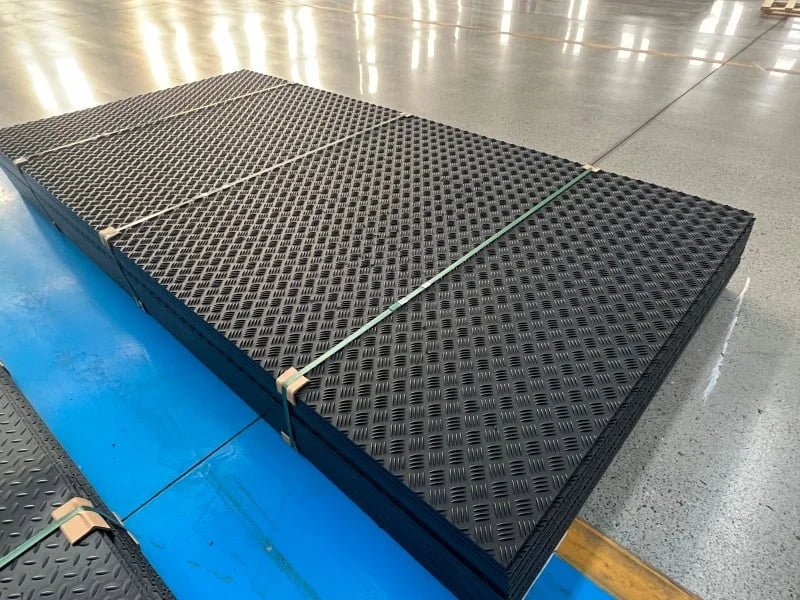

More Than Wet-Weather Access: BKM UHMWPE Mats for an Equipment Yard in Uzbekistan
For our customer in Uzbekistan, outdoor exposure and equipment wear mattered as much as access after rain. Their equipment yard needed a...
Read Full Case Study
A Mat System That Moves with the Crew: BKM HDPE Mats for Utility Maintenance in the Philippines
The customer in the Philippines needed an access system their utility crew could take from one assignment to the next. Their work...
Read Full Case Study
Keeping Turf Protection Manageable: BKM Lightweight Mats for a Swiss Landscaping Contractor
Our Swiss landscaping customer wanted to protect grass without turning every small job into a heavy mat-handling operation. Their work involved compact...
Read Full Case Study
Heavy-Duty Ground Mats for Wet-Season Oilfield Access in Nigeria
Our oilfield customer in Nigeria needed a temporary access route for equipment deliveries and maintenance work. Their concern was keeping the route...
Read Full Case StudyWhat Our Customers Say
Trusted by contractors, site managers and equipment suppliers worldwide.
Tell Us What
You Need
Send the ground condition, equipment, quantity and destination -- we'll get back to you with a tailored solution.
Send Your Requirement
A short message is fine -- we'll follow up for details.
