Heavy Duty Ground Protection Mats: Size, Weight & Load Capacity Guide

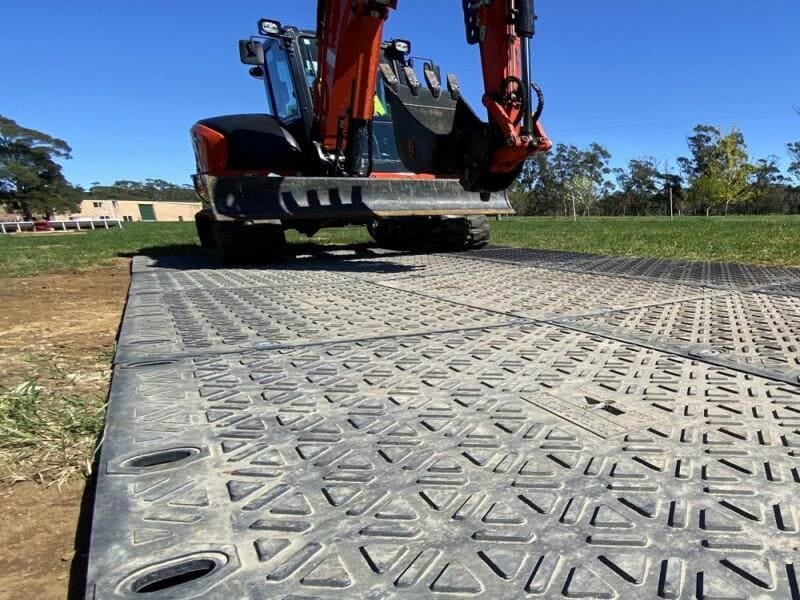

Ground Protection Mats Size & Load Capacity Comparison
March 27, 2026
Overview
Custom sizes available to meet your specific demands. These sizes are optimized for the best container loading efficiency.
| No | Size (ft & in) | Size(mm) | Texture Thickness (mm) |
Weight (kg) | Effective area (m2) | Dynamic Load Vehicles (ton) |
| 1 | 4’x 8’x 1/2″ | 1220 x 2440 x 12.7 | 17.7（one side) | 38 | 2.98 | 20-30 |
| 2 | 4’x 8’x 1/2″ | 1220 x 2440 x 12.7 | 22.7（two sides) | 41 | 2.98 | 20-30 |
| 3 | 3.94’x7.87 ‘x 1/2″ | 1200 x 2400 x 12.7 | 17.7（one side) | 37 | 2.88 | 20-30 |
| 4 | 3.28’x6.56’x 1/2″ | 1000 x 2000 x 12.7 | 17.7（one side) | 26 | 2.00 | 20-30 |
| 5 | 3.28’x6.56’x 0.39″ | 1000 x 2000 x 10 | 20（two sides) | 22 | 2.00 | 20-30 |
| 6 | 3.61’x9.51’x1/2″ | 1100 x 2900 x 12.7 | 22.7（two sides) | 44 | 3.20 | 20-30 |
| 7 | 4.92’x9.84’x0.59″ | 1500 x 3000 x 15 | 25（two sides) | 74 | 4.50 | 30-40 |
| 8 | 6.56’x19.03’x0.98″ | 2000 x 5800 x 25 | 35（two sides) | 302 | 11.60 | 60-80 |
| 9 | 6.56’x19.36’x1.1″ | 2000 x 5900 x 28 | 38（two sides) | 345 | 11.80 | 40-50 |
| 10 | 8.20’x9.84’x1.5″ | 2500 x 3000 x 38 | 48（two sides) | 293 | 7.50 | 80-100 |
| 11 | 6.56’x13.12’x1.5″ | 2000 x 4000 x38 | 48（two sides) | 312 | 8.00 | 80-100 |
| 12 | 6.56′ x14.76’x1.5″ | 2000 x 4500 x 38 | 48（two sides) | 351 | 9.00 | 80-100 |
| 13 | 8.20’x9.84’x0.98″ | 2500 x 3000 x 25 | 35（two sides) | 195 | 7.50 | 60-80 |
| 14 | 8.37’x9.84’x1.5″ | 2550 x 3000 x 38 | 48（two sides) | 300 | 7.65 | 60-80 |
| 15 | 8.37’x9.84’x1.6″ | 2550 x 3000 x 40 | 50（two sides) | 315 | 7.65 | 60-80 |
| 16 | 6.56’x 6.56’x1.18″ | 2000 x 2000 x 30 | 40（two sides) | 124 | 4.00 | 60-80 |
| 17 | 3.28’x6.56’x1.18″ | 1000 x 2000 x 30 | 40（two sides) | 62 | 2.00 | 60-80 |
| 18 | 6.56’x6.56’x2″ | 2000 x 2000 x 50 | 60（two sides) | 204 | 4.00 | 100-150 |
| 19 | 6.56’x16.40’x2.36″ | 2000 x 5000 x 60 | 70（two sides) | 610 | 10.00 | 150-220 |
| No | Size (ft & in) | Size(mm) | Texture Thickness (mm) |
Static Load Equipment (ton) |
Typical Application |
| 1 | 4’x 8’x 1/2″ | 1220 x 2440 x 12.7 | 17.7（one side) | 50 | Small vehicles, light equipment |
| 2 | 4’x 8’x 1/2″ | 1220 x 2440 x 12.7 | 22.7（two sides) | 50 | Small vehicles, light equipment |
| 3 | 3.94’x7.87 ‘x 1/2″ | 1200 x 2400 x 12.7 | 17.7（one side) | 50 | Small vehicles, light equipment |
| 4 | 3.28’x6.56’x 1/2″ | 1000 x 2000 x 12.7 | 17.7（one side) | 50 | Small vehicles, light equipment |
| 5 | 3.28’x6.56’x 0.39″ | 1000 x 2000 x 10 | 20（two sides) | 50 | Small vehicles, light equipment |
| 6 | 3.61’x9.51’x1/2″ | 1100 x 2900 x 12.7 | 22.7（two sides) | 50 | Small vehicles, light equipment |
| 7 | 4.92’x9.84’x0.59″ | 1500 x 3000 x 15 | 25（two sides) | 60 | Medium trucks, excavators |
| 8 | 6.56’x19.03’x0.98″ | 2000 x 5800 x 25 | 35（two sides) | 120 | Heavy trucks, mixer trucks |
| 9 | 6.56’x19.36’x1.1″ | 2000 x 5900 x 28 | 38（two sides) | 80 | Heavy trucks, mixer trucks |
| 10 | 8.20’x9.84’x1.5″ | 2500 x 3000 x 38 | 48（two sides) | 160 | Oilfield, mining heawy equipment |
| 11 | 6.56’x13.12’x1.5″ | 2000 x 4000 x38 | 48（two sides) | 160 | Oilfield, mining heawy equipment |
| 12 | 6.56′ x14.76’x1.5″ | 2000 x 4500 x 38 | 48（two sides) | 160 | Oilfield, mining heawy equipment |
| 13 | 8.20’x9.84’x0.98″ | 2500 x 3000 x 25 | 35（two sides) | 120 | Heavy engineering, cranes |
| 14 | 8.37’x9.84’x1.5″ | 2550 x 3000 x 38 | 48（two sides) | 120 | Heavy engineering, cranes |
| 15 | 8.37’x9.84’x1.6″ | 2550 x 3000 x 40 | 50（two sides) | 120 | Heavy engineering, cranes |
| 16 | 6.56’x 6.56’x1.18″ | 2000 x 2000 x 30 | 40（two sides) | 120 | Heavy engineering, cranes |
| 17 | 3.28’x6.56’x1.18″ | 1000 x 2000 x 30 | 40（two sides) | 120 | Heavy engineering, cranes |
| 18 | 6.56’x6.56’x2″ | 2000 x 2000 x 50 | 60（two sides) | 200+ | Ultra heavy machinery,crawlerequipment |
| 19 | 6.56’x16.40’x2.36″ | 2000 x 5000 x 60 | 70（two sides) | 300+ | Extreme loads, long-term use |
| HDPE & UHMWPE Specifications: | ||
| Property | Values | |
| HDPE | UHMWPE | |
| Tensile strength at yield | 15MPa | 22MPa |
| Elongation at Break | 200% | 350% |
| Modulus of elasticity in tension | 800MPa | 700MPa |
| Modulus of elasticity in flexure | 750MPa | 650MPa |
| Impact strength | ≥80kJ/m2 | ≥120kJ/m2 |
| Creep rupture strength after 1000hrs with static load | 7.0MPa | 8.5MPa |
| Time yield limit for 1% elongation after 1000hrs | 3.8MPa | 4.2MPa |
| Ball indentation hardness | 120N/mm2 | 130N/mm2 |
| Shore hardness D | 55~60 | 60~65 |
| Glass transition temperature | -120℃ | -125℃ |
| Crystalline melting point | 120~125℃ | 135~138℃ |
| Service temperature (short term) | -100~+80℃ | -200~+90℃ |
| Service temperature (long term) | -80~+70℃ | -150~+80℃ |
| Water absorption @ saturation @ 23°c | ≤0.01% | ≤0.01% |
| Volume Resistivity UV Stabilized | ≥1013Ω·cm | ≥1014Ω·cm |
