Key Features & Advantages

• Plan from the gate to the stopping point. Mark the entrance, lane, unloading approach and return movement before estimating your order. We configure the mat layout around that complete journey, including any space needed to reverse. Protecting only a straight section can leave tires outside the covered area where your vehicles turn or stop.

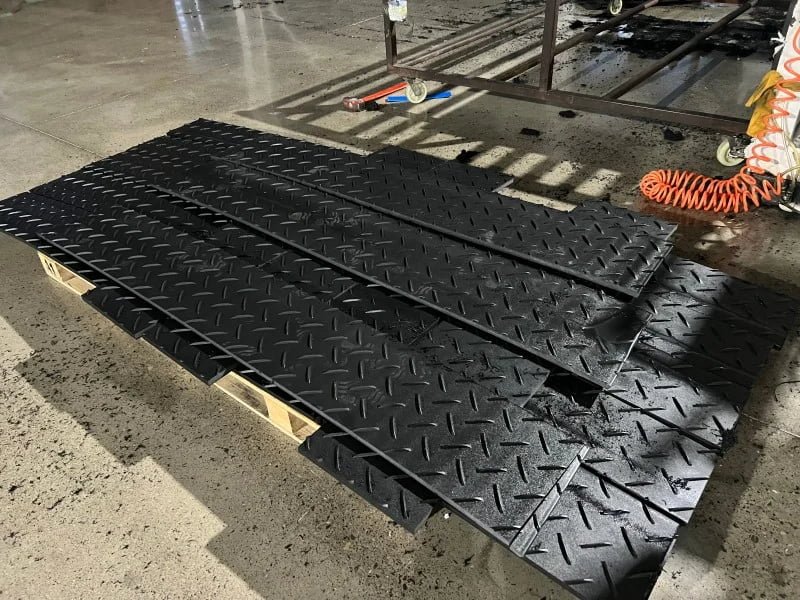

• Use a defined portable reference. Our two-sided HDPE reference measures 1220 × 2440 mm with a 12.7 mm body, approximately 22.7 mm overall thickness and a weight of about 41 kg. These figures help you plan handling and storage. They do not establish that every delivery vehicle can use the route.
• Include occasional deliveries in selection. List the loaded vehicles that will enter, not just the compact machine used every day. Send axle loads, wheel or track details and expected passes with your ground information. An infrequent heavier delivery still needs its own route assessment; do not extend a service-vehicle approval by assumption.
• Cover turns and changes in width. Show corners, passing places and unloading positions on your sketch. We review compatible panel orientation and connections for those areas instead of calculating solely from route length. Keep the vehicle swept path on the supported mat surface rather than relying on two narrow wheel strips through a bend.
• Supply the connectors with the route. We can review two-way and four-way arrangements against the selected hole layout. Count the actual junctions and identify replacement hardware with the order. Check connections after initial traffic and when a route moves; similar panel dimensions do not by themselves establish compatibility with existing stock.
• Make relocation part of the handling plan. Tell us the available unloading space and how often your route will move. Carry openings help with positioning, but a 41 kg panel still requires a suitable handling method. Retain an accessible recovery path so the final mats can be removed without stranding equipment beyond them.
• Keep access matched to changing ground. Remove debris before laying panels, keep tread clear and inspect settlement, edges and joints during use. Recheck the route after rain or a change in vehicles. Where portable panels no longer suit the traffic or support conditions, review a heavier system or ground preparation rather than continuing on a failing route.

Applications

• Building-site gate to unloading bay. Lay a connected route for approved compact plant and service deliveries from an established entrance to the receiving area. Include the final turn and supported stopping space. Check any heavier delivery separately before it joins the same portable-mat route.
• Extensions with restricted side access. Use a removable panel layout where equipment must pass between an existing building and the active work area. Measure gates, corners and room for panel handling before selecting the format. Revise the route when barriers or material-storage positions change.
• Utility access during phased construction. Connect established hardstanding to successive drainage or electrical work locations for suitable service traffic. Keep the route outside excavation restrictions and reassess the ground at each move. Recover completed sections only when your removal equipment still has a supported exit.

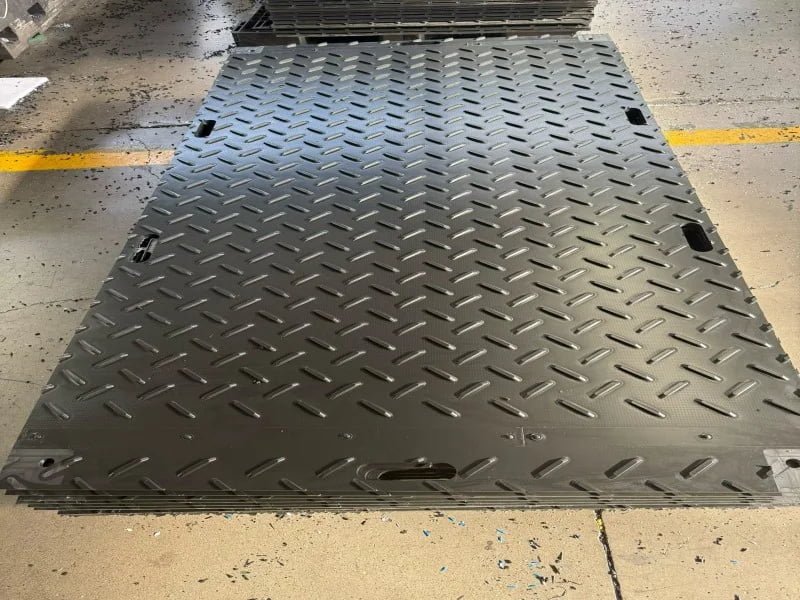

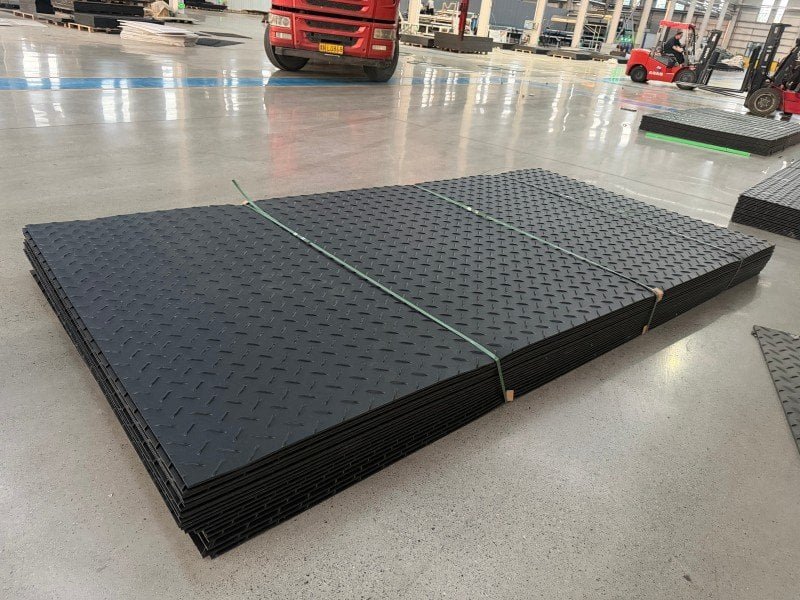

Two-sided portable HDPE reference for a gate-to-work-area access enquiry. Confirm the final surface, hole layout and production drawing before ordering.

This configuration requires suitable ground support and an assessment of the actual traffic. Deep mud, unsupported voids and concentrated outrigger loads are outside this portable travel-access specification. Related case-study specifications remain project-specific.
