Technical Data

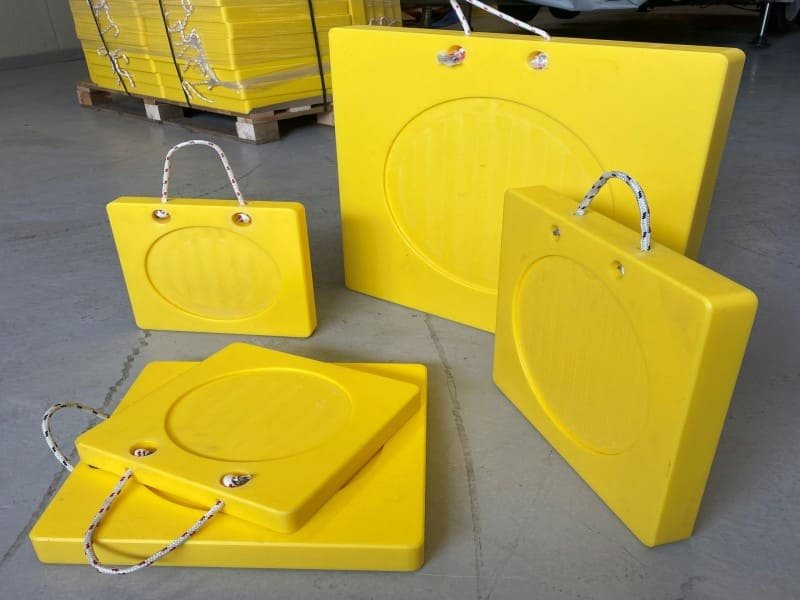

Standard Sizes & Load Capacities of Outrigger Pad
June 2, 2026
Overview
|
Square Outrigger Pad |
Round Outrigger Pad | ||
|
Common size |
Loading capacity for crane feed | Common size |
Loading capacity for crane feed |
|
300*300*40mm |
3-5 tons | 300*40mm | 2-6 tons |
|
400*400*40mm |
4-6 tons | 400*40mm | 3-7 tons |
|
400*400*50mm |
6-10 tons | 500*40mm |
4-8 tons |
|
500*500*40mm |
10-12 tons | 500*50mm |
8-12 tons |
|
500*500*50mm |
12-15 tons | 600*40mm | 10-14 tons |
| 500*500*60mm | 13-17 tons | 600*50mm |
12-15 tons |
|
600*600*40mm |
15-18 tons | 600*60mm | 15-20 tons |
|
600*600*50mm |
16-20 tons | 700*50mm |
22-30 tons |
| 600*600*60mm | 18-25 tons | 700*60mm |
25-32 tons |
|
700*700*60mm |
25-35 tons | 700*70mm | 30-35 tons |
| 800*800*70mm | 30-45 tons | 800*70mm |
40-50 tons |
|
1000*1000*80mm |
50-70 tons | 1000*80mm | 45-60 tons |
| 1200*1200*100mm | 60-100 tons | 1200*100mm |
50-90 tons |
| 1500*1500*100mm | 120-180 tons | 1500*100mm |
80-150 tons |
