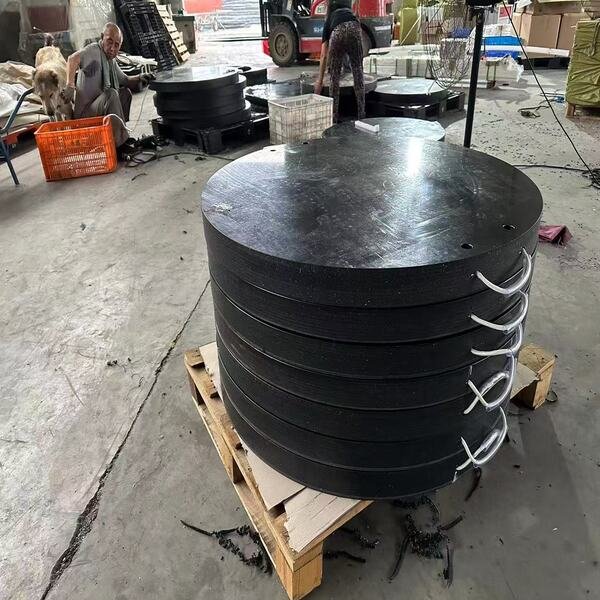

Crane Truck Outrigger Pads
Stabilizer Mats That Prevent Cracks & Surface Damage for City Work
Crane truck outrigger pads are employed to ensure that the outrigger legs of truck-mounted cranes have greater stability. They are also referred to as outrigger mats and stabilizing pads within the market. These pads provide more contact area underneath each outrigger leg during set-up and hoisting activities. Their function during crane hoisting activities is to distribute the outrigger force, thereby lowering ground-bearing pressure when operating on different types of ground conditions.
Product Specifications
Detailed technical specifications
Key Features & Advantages
- Built for truck crane load distribution.
- Plastic HDPE & UHMWPE material options for repeated field use.
- Suitable for both soft and hard setup surfaces.
- Available in multiple duty levels from lighter and medium-duty pads up to heavier-duty.
- Square, round, and cavity-style designs are available.
- Customized rope handles, internal handles, grip tubing, and similar carry features for quick and safe placement.
Applications
- Truck crane mounted system operating on compacted soils, gravel, and rough construction terrain.
- Crane operation along road edges where asphalt is used for shoulders and utilities corridors.
- Lifting operations from signage, lighting, utility, and service trucks where crane truck operates from uneven and limited access sites.
- Concrete boom truck, concrete pumping truck, and other service trucks where outrigger requires increased bearing area.
- Repetitive site preparation work.
Certified for Global Standards
Each batch undergoes thorough inspection on the shop floor. Raw material is tested upon arrival, as well as finished parts upon completion. Anything failing to conform to specifications is not shipped out.
ISO 9001 Quality Management
ISO 9001:2015 certification requires written processes, production control measures, and traceability of the process from initial raw material to finished part. More critically, ISO helps us maintain tolerances across multiple batches, rather than just in theory.
Food-Grade FDA Compliance
In cases of applications involving food production, only selected types of HDPE and UHMWPE materials which conform to FDA food-grade standards are used. These grades are usually utilized in cutting surfaces, guides, and wear parts.
RoHS Compliant Manufacturing
Materials comply with RoHS environmental regulations in terms of substance content restrictions. This is ensured by monitoring the components of the material, rather than the finished part.
Traceable Material Test Reports (MTR)
Material test reports available upon request include mechanical properties such as tensile strength and impact value, as well as wear information and dimensional checks.
Frequently Asked Questions
Yes. Our pads adopt double-sided anti-slip tread design, both sides can be used alternately. This will effectively prolong the service cycle and reduce the cost of use.
Yes. They are lightweight and need no complex installation, realizing fast placement and removal.
No. The material is specially formulated to resist warping, remaining flat and stable even after long-term outdoor exposure and frequent handling.
Yes. HDPE & UHMWPE plastic materials are excellent electrical insulators. They can offer reliable safety protection for crane truck operations near power lines, transformers and live electrical equipment.
Stop the lift immediately. Secure or lower the load safely, and correct the support condition before continuing. Sinking usually indicates an inadequate setup.
Field conditions usually control the setup. Softer or questionable ground calls for bigger and thicker mats. Wet, uneven, or weak surfaces may require larger pads and additional cribbing.
Yes. With high durability and wear resistance, they can be reused in different construction scenarios for crane truck fleets with stable performance.
Yes. They evenly disperse pressure to avoid soil compaction and rutting, protecting newly planted turf and delicate landscapes from damage.
