Ground Protection Mats Built for the Toughest Jobs
Industrial-grade HDPE and UHMWPE ground protection mats for construction sites, temporary roads, heavy equipment access, turf protection, and outdoor events. Engineered to protect your ground, support your equipment, and survive repeated deployments.
- ✓ Load capacity up to 80+ tons
- ✓ Reusable 5-10+ year lifespan
- ✓ Custom sizes & OEM available
- ✓ Global shipping, fast lead times
What Are Ground Protection Mats?
Ground protection mats -- also known as construction mats, access mats, temporary road mats, or trackway mats -- are heavy-duty plastic panels manufactured from HDPE (High-Density Polyethylene) or UHMWPE (Ultra-High Molecular Weight Polyethylene). They are placed on soft, vulnerable, or unstable ground to evenly spread out the load from heavy machinery, vehicles, and pedestrian traffic to avoid any damage to the ground.
HDPE ground protection mats are much lighter than conventional wood mats or steel mats. They are also chemically inert, UV-resistant, and recyclable. They do not need any maintenance and can easily withstand hundreds of uses without suffering from rotting or rusting.

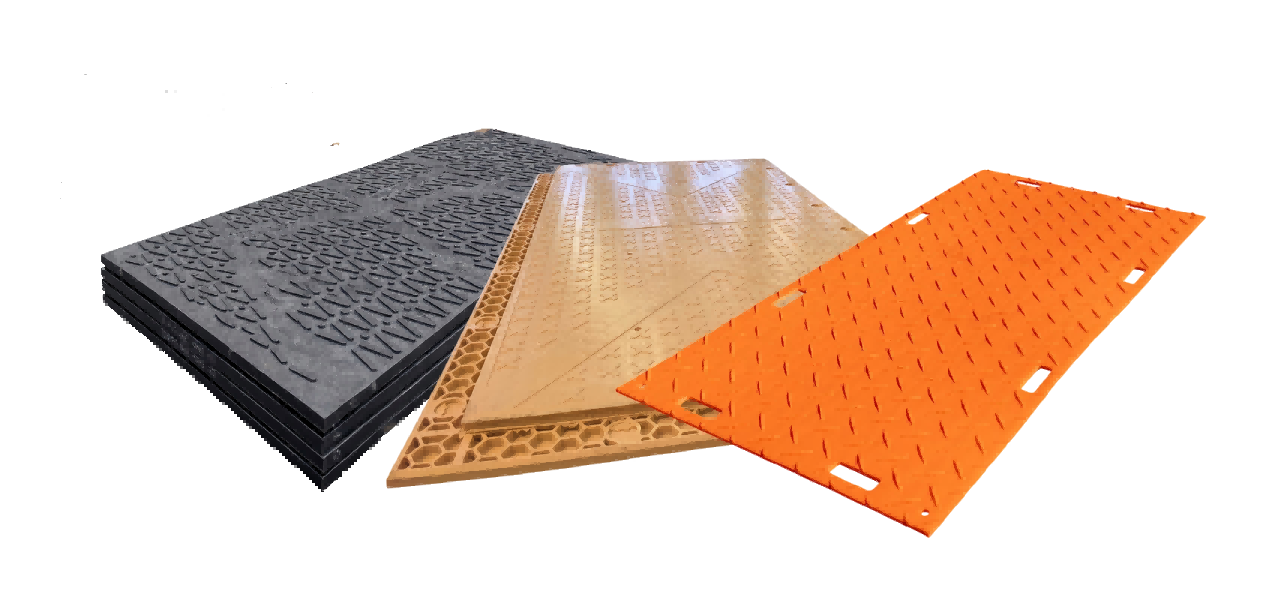

Ground Protection Mat Types & Categories
From lightweight turf protection panels to ultra-heavy-duty crane mats, we manufacture the full spectrum of HDPE and UHMWPE ground protection solutions for every industry and application.

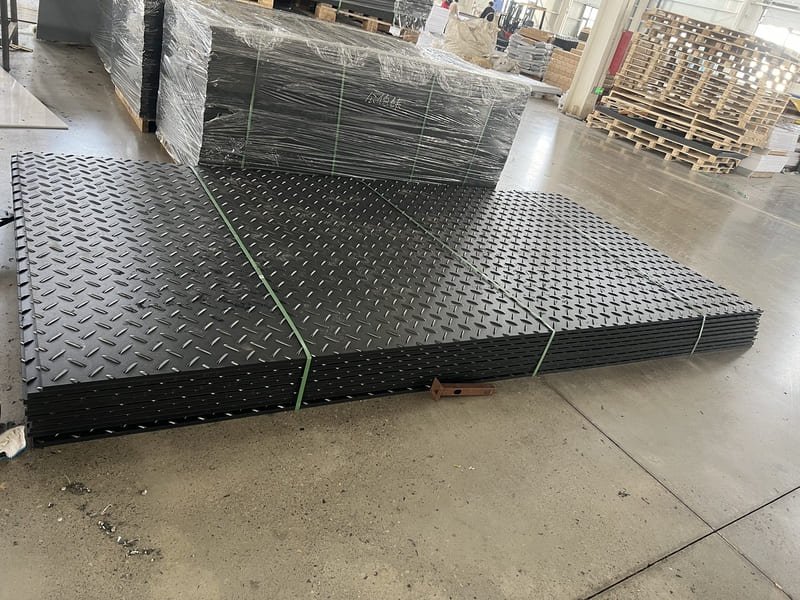

Light-Duty Ground Protection Mat

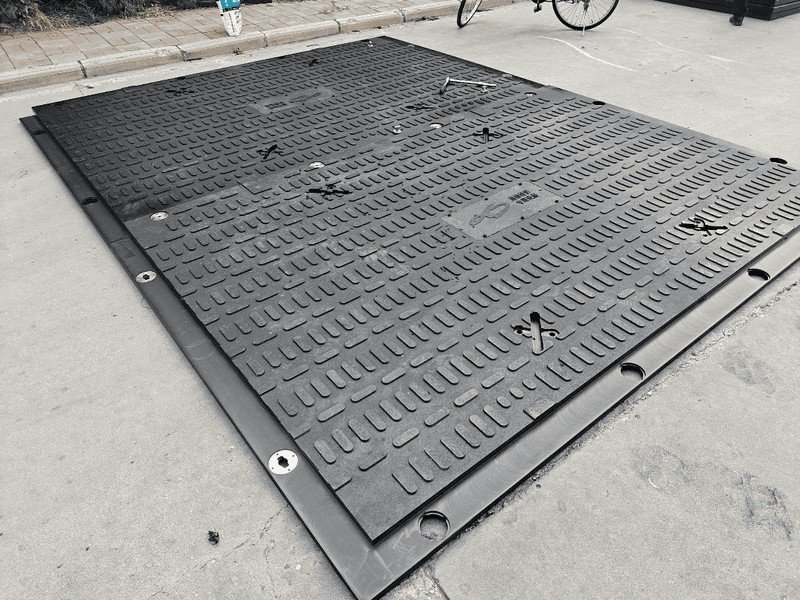

Heavy-Duty Ground Protection Mat
Cellular Core Heavy-Duty Ground Protection Mat
Heavy-Duty Ground Protection Systems
Engineered HDPE and composite matting systems for temporary access roads, stable work platforms, and demanding construction or infrastructure projects.

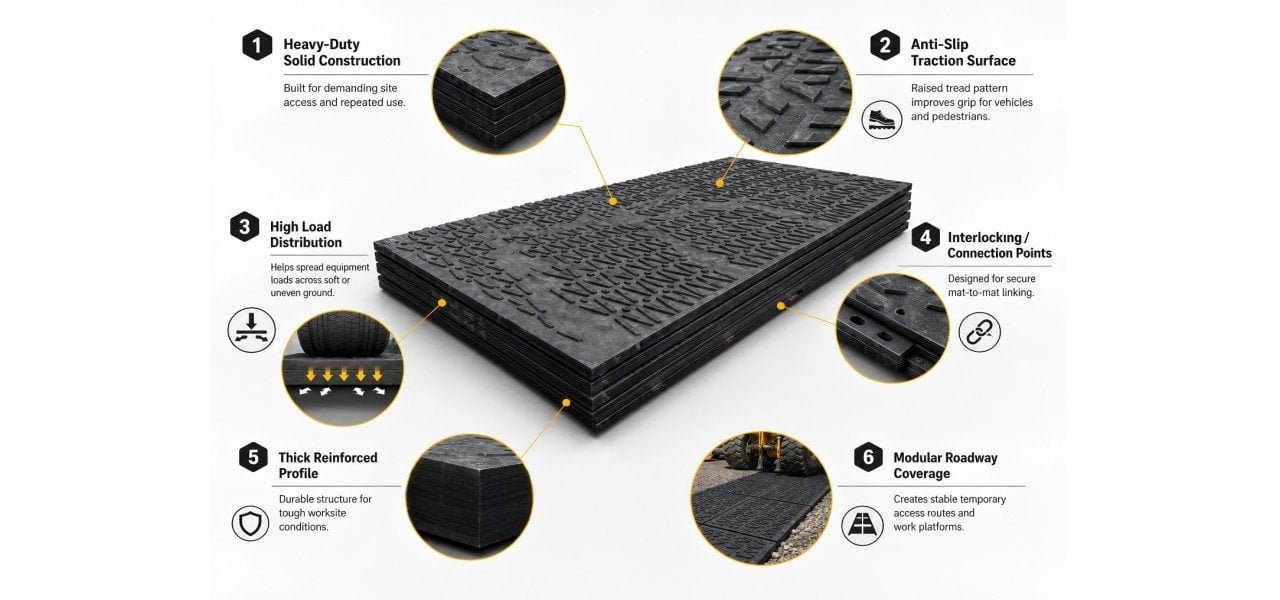

Heavy-Duty Solid HDPE Ground Protection Mats
Reusable solid-core access mats designed to spread vehicle and equipment loads, improve traction, and create temporary roadways, turning areas, work pads, parking zones, and pedestrian routes over soft or sensitive ground.
Stable Access Across Mud, Grass, Sand, Gravel, and Uneven Ground
The wide solid panel footprint reduces concentrated wheel and track pressure, helping control rutting, surface displacement, and vehicle bogging while keeping crews and equipment moving through changing site conditions.
Purpose-Built Traction Profiles
Raised vehicle tread improves tire grip and mud displacement; a lower-profile side can support pedestrian routes and selected solid-tire equipment.
Flexible Layout & Connection Options
Two-way and four-way connectors help form straight roads, widened passing zones, parking pads, work platforms, and turning areas while limiting panel movement.
Fast Handling, Recovery & Reuse
Integrated handholds, manageable panel formats, and dry-lay installation reduce setup time. Non-porous HDPE can be washed, inspected, stacked, and moved to the next project.
Load Distribution & Rut Control
The broad panel area spreads vehicle loads across more ground, reducing point pressure that can cut ruts, damage turf, destabilize finished surfaces, or leave equipment stuck.
Weather-Resistant HDPE Construction
HDPE does not absorb water, rot, splinter, or delaminate like plywood. UV-stabilized material options support repeated outdoor use in wet, muddy, corrosive, or variable-weather environments.
Configurable Site Coverage
Panels can be installed as a single track, double track, full-width roadway, widened corner, laydown zone, or work pad. Connector spacing and seam layout can be adapted to site traffic.
Typical Project Applications
One mat system, multiple temporary access requirements

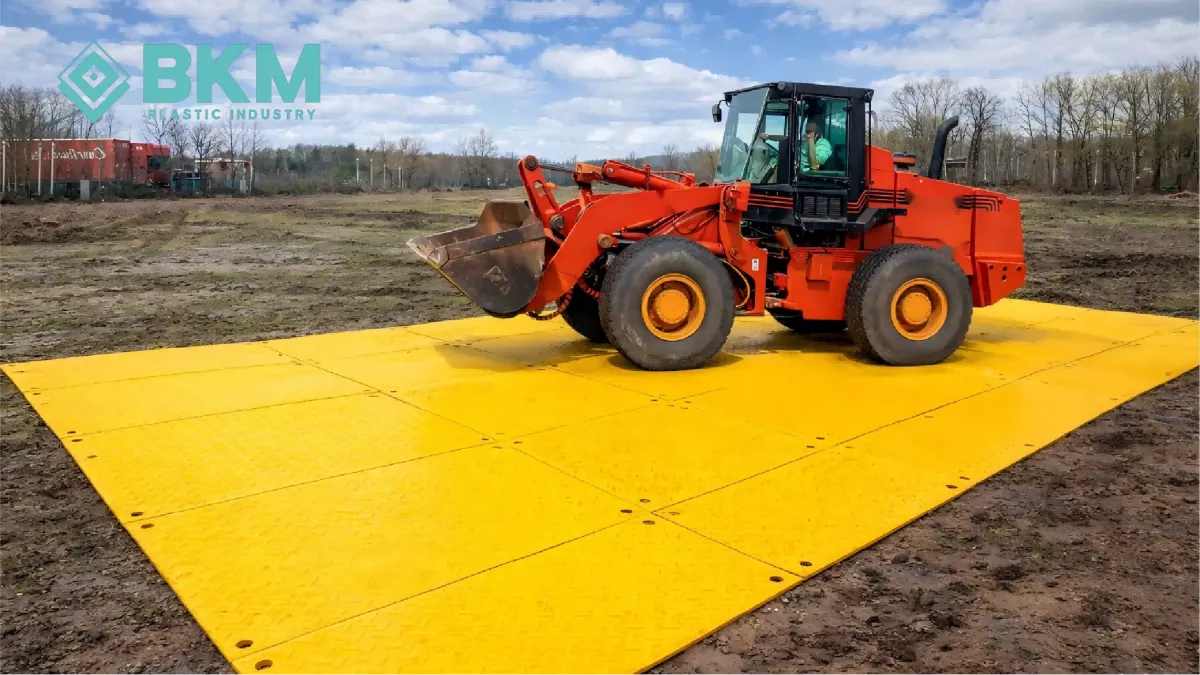

Construction Access
Dump trucks, service vehicles, loaders, telehandlers, skid steers, and material delivery routes.
Utilities & Infrastructure
Power-line access, pipeline work, road maintenance, telecom projects, and remote repairs.
Landscaping & Property Protection
Access across lawns, driveways, pavers, paths, cemeteries, parks, and finished residential surfaces.
Events & Temporary Facilities
Production routes, parking, pedestrian paths, tent floors, staging areas, and service access.
Equipment & Material Staging
Laydown yards, storage pads, portable restroom areas, temporary workshops, and loading zones.
Sensitive or Weak Ground
Mud, wet soil, loose sand, soft grass, gravel, uneven ground, and other low-bearing surfaces.
Select by Site Conditions, Not Tonnage Alone
Published static-load figures do not describe every real site. Final mat selection and layout should consider the complete operating condition.
- Ground bearing capacity and moisture
- Gross vehicle, axle, wheel, or track load
- Turning, braking, slope, and repeated passes
- Mat thickness, seam direction, and connectors
- Installation duration and required ground protection

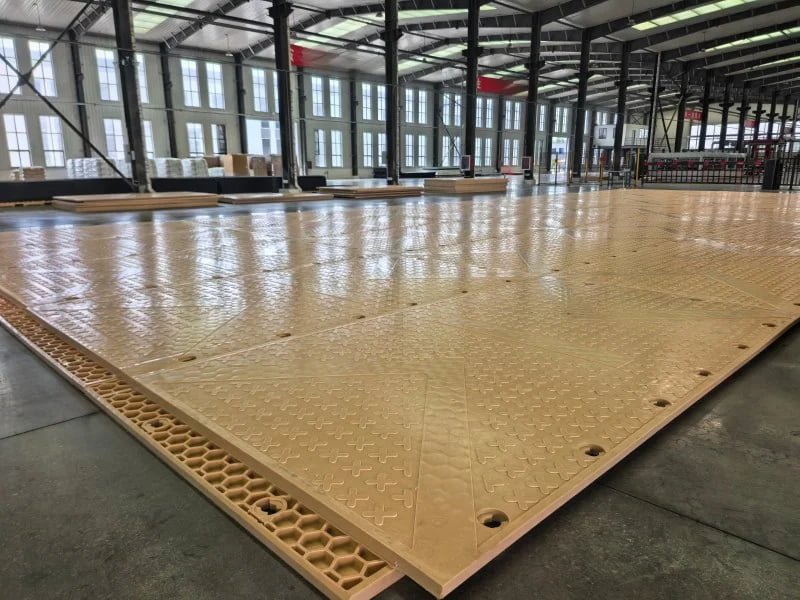

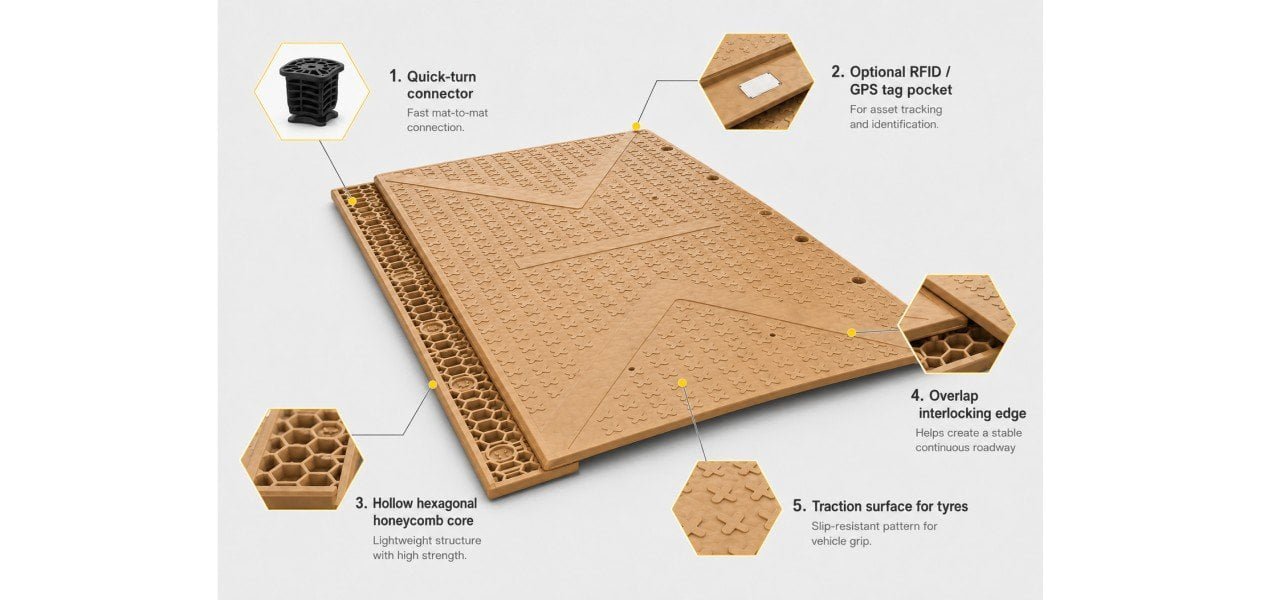

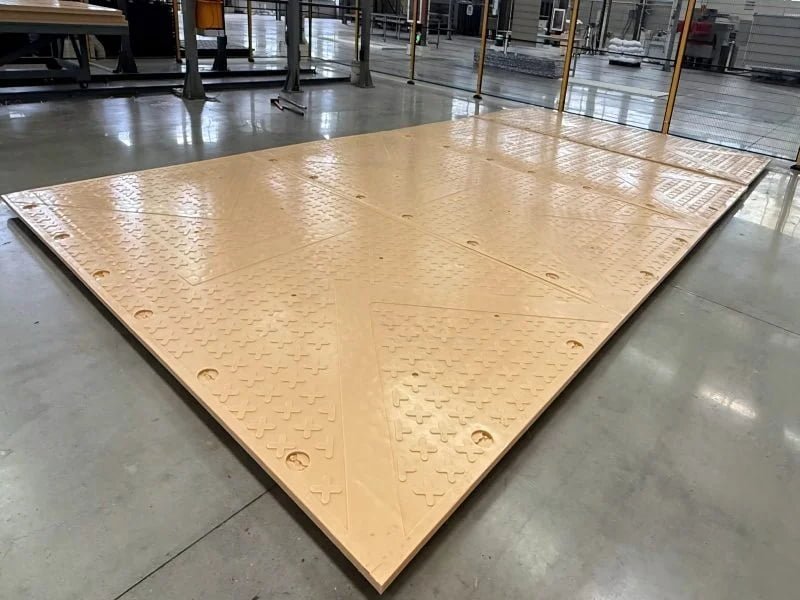

Cellular Core Heavy-Duty Ground Protection Mat
Designed for the same class of heavy-duty temporary access and work-platform applications as established large-format composite mat systems.

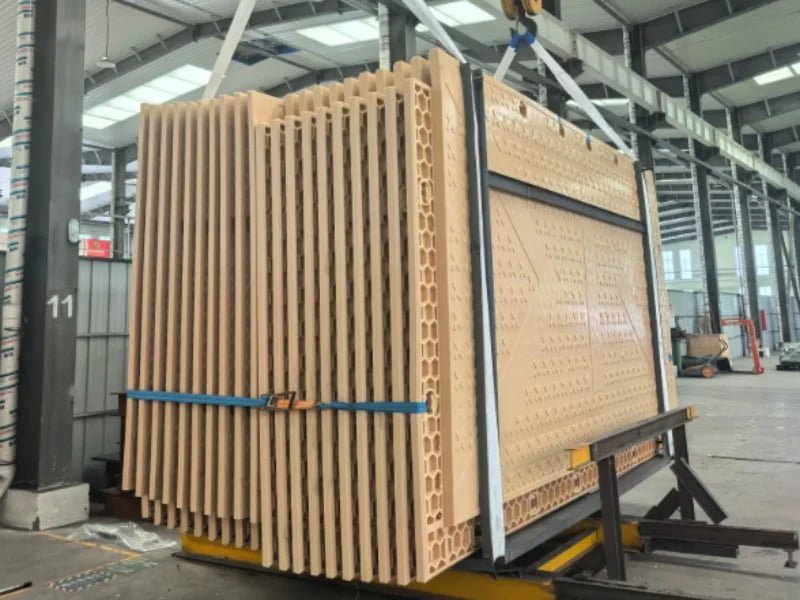

Sealed Cellular-Core Construction for Temporary Roads and Work Pads
The single-piece composite body spreads wheel and track loads over soft, muddy, uneven, or environmentally sensitive ground while creating a stable surface for repeated heavy-equipment movement.

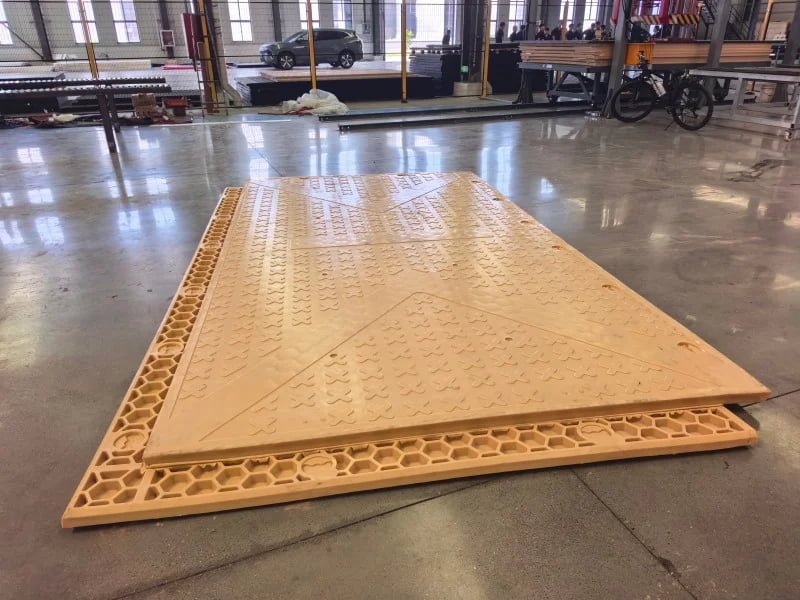

Sealed Cellular-Core Body
Rigid internal structure without open drainage cells
Soft-Ground Access
Temporary roads over mud, sand, wetlands, and weak soil

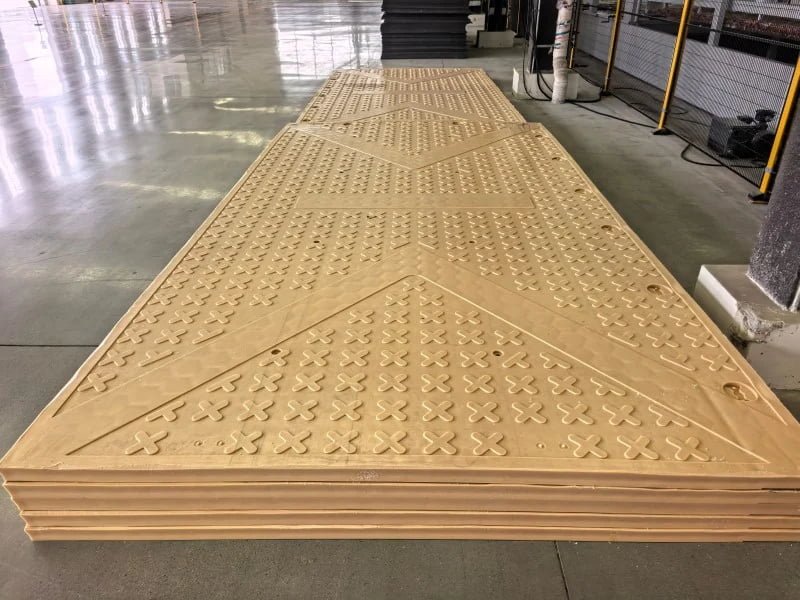

Interlocking Roadway Surface
Connected panels help control gaps and differential movement
Mechanical Handling
Designed for forklift or crane-assisted deployment
Continuous Interlocking Surface
Connected large-format mats form a unified roadway or work platform that helps reduce panel separation, uneven transitions, and surface movement.
Sealed, Non-Porous Construction
The closed composite body resists water absorption and is easier to wash between projects, helping reduce the transfer of mud, seeds, and site contaminants.
Heavy Load Distribution
The rigid cellular core spreads concentrated vehicle and equipment loads across a wider footprint to support access over unstable terrain and reduce rutting.
Need help choosing the right ground protection system for your project?
Shop Ground Protection Mats
Browse our in-stock and made-to-order ground protection mat products. All products are available in custom specifications.

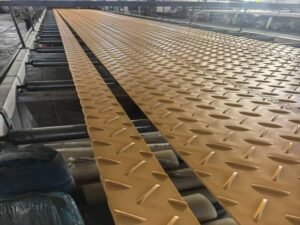

Ground Protection Mats for Snow
View Details

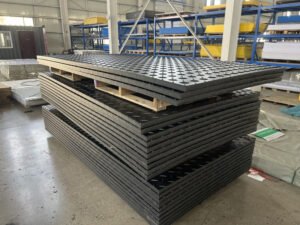

Heavy Equipment Mats
View Details

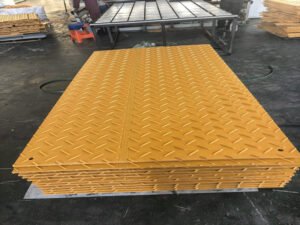

Construction Mud Mats
View Details
4x8 Ground Protection Grass Protection Mats
View Details

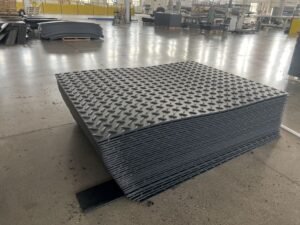

Double Sided 3' x 8' Ground Protection Mats
View Details

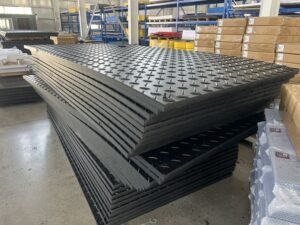

Ground Protection Matting
View Details

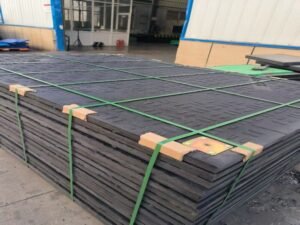

Ground Works Protection Mats
View Details

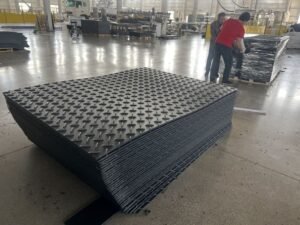

Trackway Mats
View Details
HDPE vs. UHMWPE: Choosing the Right Material
Both materials deliver exceptional performance. The right choice depends on your specific load requirements, budget, and application environment.
High-Density Polyethylene
The versatile workhorse
✓ Recommended for most ground protection applications. Cost-effective, durable, and widely available in custom sizes.
WPE
Ultra-High Molecular Weight PE
Maximum performance
✓ Recommended for maximum load applications, repeated heavy-use deployments, and environments where wear resistance is critical.
Standard Product Specifications
The following specifications represent our standard range. All dimensions, thicknesses, colors, surface patterns, and connecting systems can be customized to meet your project requirements. Contact us with your specifications for a tailored quotation.
| Parameter | Specification |
|---|---|
| Standard Size | 2ft×8ft, 3ft×8ft, 4ft×8ft (custom available) |
| Thickness | 0.75 in / 1 in / 1.25 in / 1.5 in |
| Material | HDPE / UHMWPE |
| Load Capacity | Up to 80 tons per mat (model dependent) |
| Weight | 45-130 lbs per mat (size/thickness dependent) |
| Color | Black (standard), Yellow, Orange, Custom |
| Surface | Diamond-tread / Smooth / Custom pattern |
| Temperature Range | -40°F to 180°F (-40°C to 82°C) |
| UV Resistance | UV stabilized, outdoor rated |
| Certifications | ISO 9001, RoHS compliant, FDA-grade available |
* Specifications subject to change. Custom specifications available upon request.
Engineered for Performance
Interlocking Connection System
Pin-and-loop or built-in connecting brackets allow mats to be linked into continuous roadways or platforms, preventing shifting under load.
Integrated Carrying Handles
Pre-cut hand holds allow single or two-person manual handling without additional equipment for most mat sizes.
Anchor Hole System
Optional pre-drilled anchor holes allow staking to the ground on sloped terrain or in high-wind environments.
Anti-Slip Surface Texture
Diamond-tread or custom surface patterns provide traction for pedestrians and wheeled equipment in wet conditions.
Drainage Design
Optional drainage perforations prevent water pooling on the mat surface, maintaining grip and reducing slip risk.
All-Weather Performance
Maintains structural integrity from -40°F to 180°F, suitable for arctic, desert, and tropical environments.
Where Ground Protection Mats Are Used
Our ground protection mats serve a wide range of industries and applications worldwide. Wherever heavy loads meet sensitive ground, our mats provide the solution.
Construction Sites
Protect soft ground during excavation, foundation work, and heavy machinery access routes.

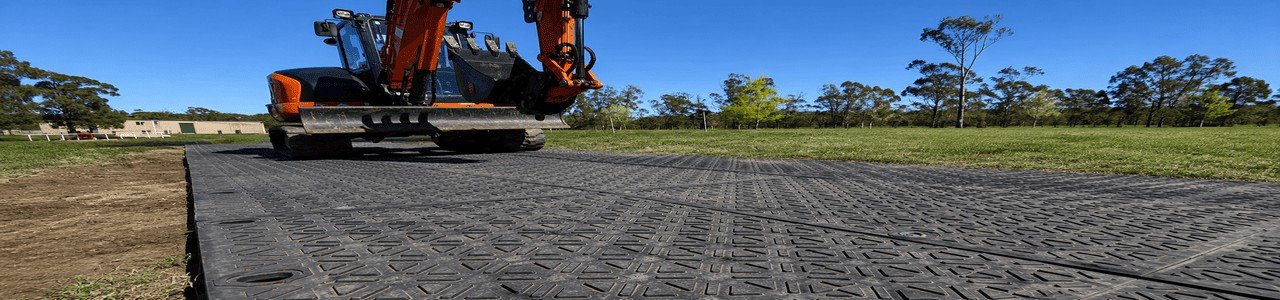

Heavy Equipment Access
Create stable temporary roads for cranes, excavators, and haul trucks on unstable terrain.
Outdoor Events & Festivals
Preserve turf and lawns at concerts, weddings, and public gatherings with minimal footprint.
Turf & Grass Protection
Keep sports fields and green spaces intact during maintenance and utility operations.
Beach Access
Provide firm access paths across soft sand for pedestrians, service vehicles, and event equipment.
Snow Access Roads
Create stable temporary access routes over snow-covered or frozen ground for vehicles and workers.

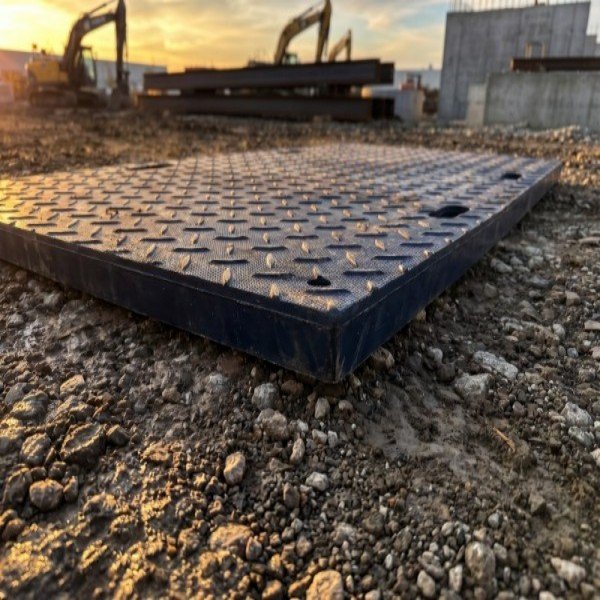

Mining & Quarrying
Withstand extreme loads and abrasive conditions in open-pit mining and quarry operations.
Temporary Airport Access
Support temporary aircraft service roads, maintenance access, and ground operations during airport projects.
How to Choose the Right Ground Protection Mat
Use this quick-reference guide to identify the best mat specification for your application. When in doubt, always select the next thickness up -- under-specified mats risk failure under peak loads.
| No | Size (ft & in) | Size (mm) | Texture Thickness (mm) |
Weight (kg) |
Area (m²) |
Dynamic Load Vehicle (ton) |
Static Load Outrigger (ton) |
Typical Application |
|---|---|---|---|---|---|---|---|---|
| 1 | 4′×8′×1/2″ | 1220 × 2440 × 12.7 | 17.7 (one side) | 38 | 2.98 | 20-30 | 50 | Small vehicles, light equipment |
| 2 | 4′×8′×1/2″ | 1220 × 2440 × 12.7 | 22.7 (two sides) | 41 | 2.98 | 20-30 | 50 | Small vehicles, light equipment |
| 3 | 3.94′×7.87′×1/2″ | 1200 × 2400 × 12.7 | 17.7 (one side) | 37 | 2.88 | 20-30 | 50 | Small vehicles, light equipment |
| 4 | 3.28′×6.56′×1/2″ | 1000 × 2000 × 12.7 | 17.7 (one side) | 26 | 2.00 | 20-30 | 50 | Small vehicles, light equipment |
| 5 | 3.28′×6.56′×0.39″ | 1000 × 2000 × 10 | 20 (two sides) | 22 | 2.00 | 20-30 | 50 | Small vehicles, light equipment |
| 6 | 3.61′×9.51′×1/2″ | 1100 × 2900 × 12.7 | 22.7 (two sides) | 44 | 3.20 | 20-30 | 50 | Small vehicles, light equipment |
| 7 | 4.92′×9.84′×0.59″ | 1500 × 3000 × 15 | 25 (two sides) | 74 | 4.50 | 30-40 | 60 | Medium trucks, excavators |
| 8 | 6.56′×19.03′×0.98″ | 2000 × 5800 × 25 | 35 (two sides) | 302 | 11.60 | 60-80 | 120 | Heavy trucks, mixer trucks |
| 9 | 6.56′×19.36′×1.1″ | 2000 × 5900 × 28 | 38 (two sides) | 345 | 11.80 | 40-50 | 80 | Heavy trucks, mixer trucks |
| 10 | 8.20′×9.84′×1.5″ | 2500 × 3000 × 38 | 48 (two sides) | 293 | 7.50 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 11 | 6.56′×13.12′×1.5″ | 2000 × 4000 × 38 | 48 (two sides) | 312 | 8.00 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 12 | 6.56′×14.76′×1.5″ | 2000 × 4500 × 38 | 48 (two sides) | 351 | 9.00 | 80-100 | 160 | Oilfield, mining heavy equipment |
| 13 | 8.20′×9.84′×0.98″ | 2500 × 3000 × 25 | 35 (two sides) | 195 | 7.50 | 60-80 | 120 | Heavy engineering, cranes |
| 14 | 8.37′×9.84′×1.5″ | 2550 × 3000 × 38 | 48 (two sides) | 300 | 7.65 | 60-80 | 120 | Heavy engineering, cranes |
| 15 | 8.37′×9.84′×1.6″ | 2550 × 3000 × 40 | 50 (two sides) | 315 | 7.65 | 60-80 | 120 | Heavy engineering, cranes |
| 16 | 6.56′×6.56′×1.18″ | 2000 × 2000 × 30 | 40 (two sides) | 124 | 4.00 | 60-80 | 120 | Heavy engineering, cranes |
| 17 | 3.28′×6.56′×1.18″ | 1000 × 2000 × 30 | 40 (two sides) | 62 | 2.00 | 60-80 | 120 | Heavy engineering, cranes |
| 18 | 6.56′×6.56′×2″ | 2000 × 2000 × 50 | 60 (two sides) | 204 | 4.00 | 100-150 | 200+ | Ultra heavy machinery, crawler equipment |
| 19 | 6.56′×16.40′×2.36″ | 2000 × 5000 × 60 | 70 (two sides) | 610 | 10.00 | 150-220 | 300+ | Extreme loads, long-term use |
Important Selection Considerations
- • Always base selection on the heaviest single-axle load, not total vehicle weight.
- • Ground bearing pressure (GBP) of the underlying soil significantly affects required mat thickness.
- • On very soft ground (GBP <30 kPa), consider using two overlapping mat layers or a geotextile substrate.
- • For slopes >15°, use mats with anchor holes and stakes to prevent sliding.
- • Contact our engineering team for site-specific load calculations and recommendations.

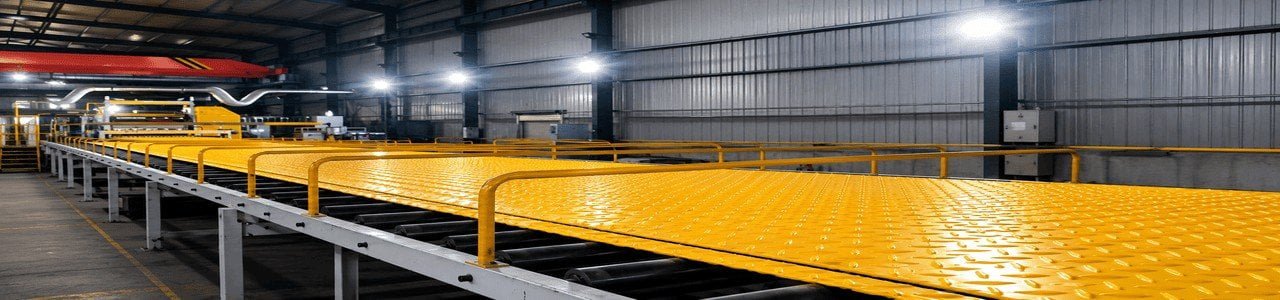

Vertically Integrated Manufacturing -- From Resin to Finished Product
Our manufacturing facility integrates every stage of production -- from raw HDPE and UHMWPE resin processing through to finished, quality-inspected products ready for shipment. This vertical integration gives us complete control over material quality, dimensional accuracy, lead times, and cost.
Ground Protection Mat Manufacturing & Testing
Explore our ground protection mat production processes, finished products, and factory performance tests.
Fully Customizable to Your Requirements
Every project is different. We offer comprehensive customization options to ensure our ground protection mats match your exact specifications, branding, and performance requirements.

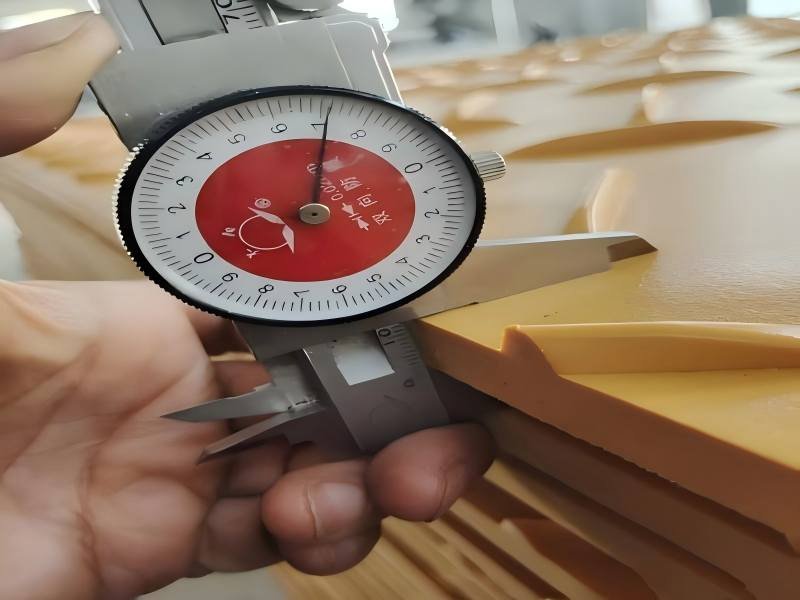

Dimensional Customization
- ✓ Custom length and width (any size)
- ✓ Thickness from 0.5 in to 2 in+
- ✓ Non-standard aspect ratios
- ✓ Radius corners and chamfered edges
- ✓ Beveled ramp edges for vehicle transitions
Surface & Aesthetic Options
- ✓ Diamond-tread anti-slip pattern
- ✓ Ribbed or studded surface texture
- ✓ Smooth surface for turf protection
- ✓ Custom color (any RAL/Pantone)
- ✓ Logo embossing or engraving
Structural & Hardware Options
- ✓ Custom hole patterns (anchor, drainage, carry)
- ✓ Integrated carrying handles
- ✓ Pin-and-loop connecting system
- ✓ Forklift pocket slots
- ✓ Embedded hardware inserts
OEM & ODM Partnership
We partner with distributors, rental companies, and branded equipment suppliers worldwide to produce private-label ground protection mats. Our OEM/ODM program includes:
- ✓ Custom branding and packaging
- ✓ Proprietary design development
- ✓ NDA and IP protection
- ✓ Dedicated account management
- ✓ Sample production before bulk order
Ready to discuss your OEM requirements?

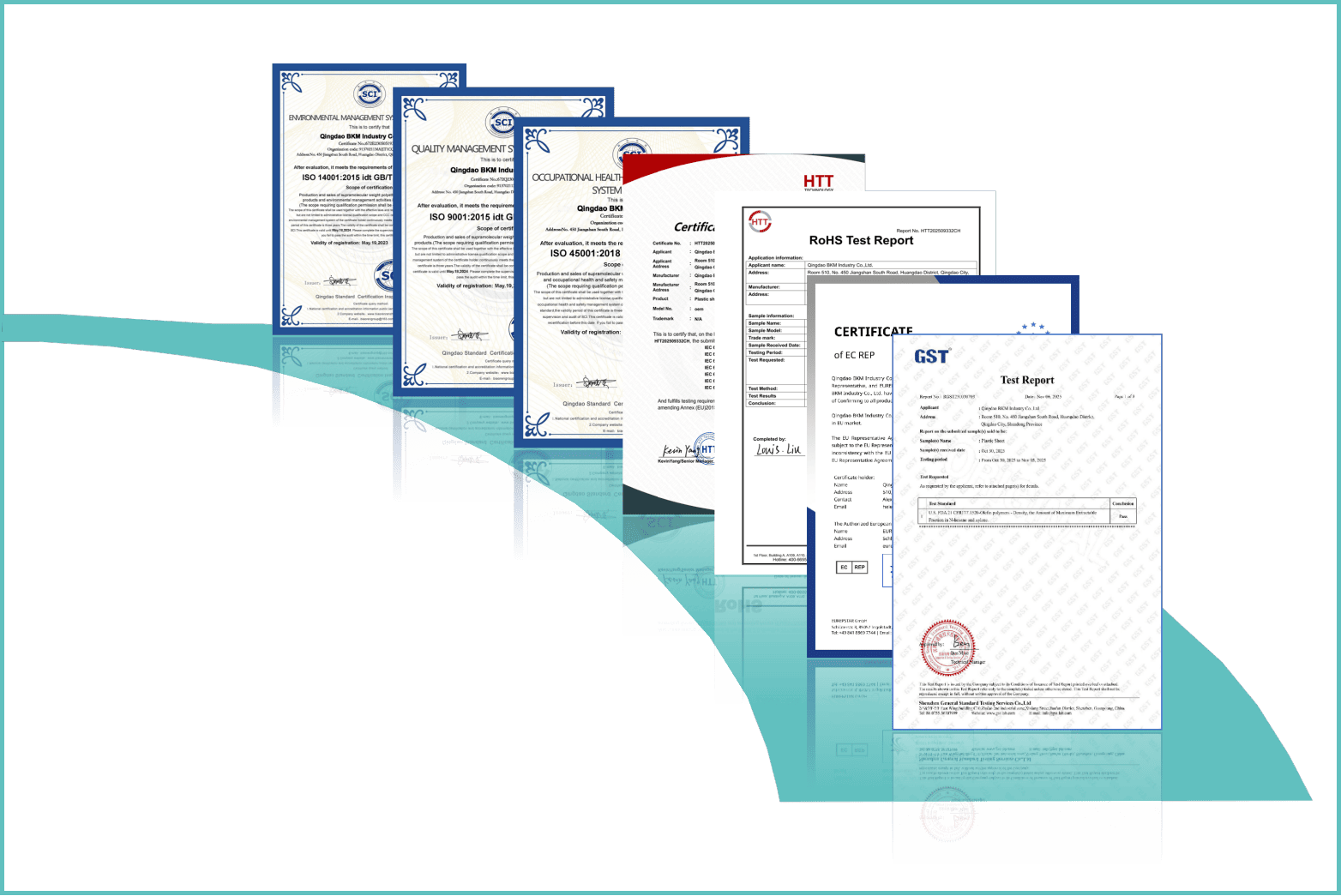

Start OEM DiscussionRigorous Quality Control at Every Stage
Every ground protection mat we manufacture passes through a multi-stage quality control process before shipment. Our commitment to quality is backed by ISO 9001 certification and supported by in-house testing equipment.
Raw Material Inspection
Virgin HDPE and UHMWPE resin certified for grade, MFI, and purity before entering production.
In-Process Dimensional Check
Continuous monitoring of thickness, width, and flatness during extrusion and pressing.
Load & Impact Testing
Samples from each production batch tested for load-bearing capacity and drop-impact resistance.
Surface Quality Inspection
Visual and tactile inspection of anti-slip texture, surface finish, and color consistency.
Hardware & Connection Testing
Connecting pins, loops, and handles tested for pull-out strength and cycle durability.
Pre-Shipment Final Inspection
Full dimensional check, quantity count, and photographic record provided with every order.
Proven in the Field
Our ground protection mats have been deployed on hundreds of projects across 50+ countries. Here is what our customers say.
From Trial Order to 6 Years of Container Orders: BKM Turf Protection Mats for a Canadian Landscaping Company
The customer was a city landscaping and green space management company in Canada. Their daily work included lawn maintenance, municipal landscaping, turf...
Read Full Case Study
450 Mats for a 1,500 ft Temporary Road: How BKM Supported a Mississippi Riverbank Earthwork Project
The customer was working on a riverbank earthwork project near the Mississippi River. The job required the movement of about 300,000 cubic...
Read Full Case Study
A Removable HDPE Access Road Helped a Forestry Contractor Keep the Project Moving
The customer was a forestry and outdoor construction contractor in the United States. His project was inside a forest area, where the...
Read Full Case Study
14 Days Saved in Calgary: How BKM Gray HDPE Mats Kept a Residential Project Moving Through Rain and Thaw
The customer was working on a large residential construction project in Panorama Hills, Calgary. The site entered a difficult stage during the...
Read Full Case Study
100 Mats First, Sold Out in One Month: How a North American Distributor Tested BKM HDPE Ground Protection Mats
The customer was a North American distributor selling construction and industrial supplies to contractors, landscapers, rental companies, and temporary access users. Ground protection...
Read Full Case Study
600 Mats Delivered in 5 Days: How BKM Helped Protect a Music Festival in Daegu
The customer was an event contractor in Daegu, South Korea. He was preparing a music festival on a grass site. Before the...
Read Full Case StudyWhat Our Customers Say
Trusted by contractors, site managers and equipment suppliers worldwide.
How to Install Ground Protection Mats
Ground protection mats are designed for fast, tool-free installation. A typical 1,000 sq ft temporary road can be installed by a two-person crew in under two hours.
Site Assessment
Survey the ground conditions, identify soft spots, slopes, and drainage. Determine the required coverage area and load requirements.
Surface Preparation
Remove large debris and level obvious high spots. For very soft ground, consider a geotextile fabric layer beneath the mats for added stability.
Mat Placement
Begin at a fixed reference point. Lay mats in a staggered brick-like pattern for maximum stability. Use connecting pins or loops to join adjacent mats.
Edge & Transition
Install beveled edge ramps at entry and exit points to prevent tripping hazards and allow smooth vehicle transitions.
Inspection & Securing
Walk the full area to verify all connections are secure. Add anchor stakes through pre-drilled holes on sloped or high-wind sites.
Removal & Storage
Lift mats using built-in carrying handles or a forklift. Rinse, inspect, and store flat or stacked in a dry area for next deployment.
Watch: Installation in 3 Minutes
See how a two-person crew deploys 500 sq ft of ground protection matting in under 90 minutes on a live construction site.
Ground Protection Mat FAQ
Answers to the most common questions from buyers, contractors, and rental companies worldwide.
Q01 What sizes are available for ground protection mats?
Our ground protection mats are available in a wide range of standard sizes to suit different applications:
- 1.2m × 2.4m (4ft × 8ft) — most popular for construction sites
- 1.5m × 3.0m (5ft × 10ft) — ideal for heavy crane outrigger areas
- 0.6m × 1.2m (2ft × 4ft) — compact mats for tight access routes
Custom sizes are available with a minimum order quantity. Contact us for a tailored quote.
Q02 What material are the mats made from, and why does it matter?
All our ground protection mats are manufactured from High-Density Polyethylene (HDPE) — a premium engineering plastic chosen for industrial applications because it offers:
- ✅ High impact resistance under heavy loads
- ✅ Low water absorption — no warping or swelling in wet conditions
- ✅ Chemical and UV resistance for outdoor longevity
- ✅ Low friction coefficient for easy repositioning
Compared to timber or composite alternatives, HDPE mats are fully recyclable, rot-proof, and reusable across hundreds of deployments.
Q03 What is the maximum load capacity?
Load capacity depends on mat thickness and the ground bearing pressure beneath:
| Thickness | Typical Load Rating | Typical Application |
|---|---|---|
| 12mm | Up to 40 tonnes | Light vehicles, pedestrian access |
| 18mm | Up to 80 tonnes | Heavy trucks, excavators |
| 25mm | Up to 120 tonnes | Cranes, heavy plant machinery |
Our engineering team can calculate the required mat coverage area for your specific equipment. Request a load calculation →
Q04 Can the mats be connected together to form a continuous access road?
Yes. All our ground protection mats feature an integrated interlocking connector system that allows mats to be linked end-to-end or side-by-side to create:
- Temporary access roads across soft or sensitive ground
- Large work platforms for crane operations
- Event flooring for outdoor festivals and exhibitions
Each mat also includes carry handles and optional anchor holes for secure staking on slopes or windy conditions.
Q05 Are the mats suitable for use on grass or sensitive surfaces?
Absolutely. Ground protection mats are specifically engineered to protect grass, turf, and ecologically sensitive surfaces while allowing heavy equipment to operate safely. Key features include:
- Flexible HDPE material that conforms to uneven terrain without cracking
- Anti-slip surface texture on both sides to prevent mat migration
- Distributed load spreading that dramatically reduces ground PSI (pounds per square inch)
They are widely used for golf courses, sports fields, landscaped parks, and heritage sites where ground preservation is a priority.
Q06 What is the minimum order quantity (MOQ) and lead time?
Our standard terms are:
- MOQ: 50 pieces for black standard products; 300 pieces for other colors; In-stock products: available from 1 piece
- Sample orders: available for quality evaluation when stock is available
- Lead time: depends on stock status, order quantity, color, and customization requirements
- Rush production: available upon request with a lead time surcharge
We support OEM and ODM programs including custom colors, logo embossing, and branded packaging. Contact our sales team for a project-specific timeline.
Q07 What shipping options are available for international orders?
We ship worldwide and support multiple international trade terms:
- FCL (Full Container Load) — most cost-effective for large orders
- LCL (Less than Container Load) — flexible for medium-volume shipments
- Air freight — for urgent small orders or samples
- DDP (Delivered Duty Paid) — we handle customs clearance to your door
Supported trade terms: EXW, FOB, CIF, DDP. Our logistics team will recommend the most cost-efficient routing based on your destination port and order volume.
Primary export markets: North America, Europe, Australia, Middle East, Southeast Asia.
Have a question not answered here?
Ask Our ExpertsWorldwide Delivery — Optimized for Bulk Orders
We ship ground protection mats to over 50 countries. Our logistics team handles all freight coordination, customs documentation, and delivery scheduling to minimize your total landed cost.
Sea Freight
FCL (Full Container Load) and LCL (Less than Container Load) to all major ports worldwide.
Air Freight
Fast delivery for urgent orders or samples. Door-to-door available.
Express Courier
DHL, FedEx, UPS for samples and small orders. Tracking provided.
DDP Service
Delivered Duty Paid -- we handle customs clearance and last-mile delivery.
Shipping & Trade Details
Everything you need to plan your import seamlessly
Trade Terms Supported
Flexible trade terms to suit your procurement process and risk preference.
Documentation Provided
- Commercial Invoice
- Packing List
- Bill of Lading
- Certificate of Origin
- Test Reports
- MSDS (if required)
Container Loading Guide
- 20GP: ~330 pcs (4ft×8ft, 1/2 in)
- 40HQ: ~650 pcs (4ft×8ft, 1/2 in)
- Stacked pallet or flat-pack options
- Container optimization service
Get Your Ground Protection Mat Quote Today
Tell us about your project and we'll provide a detailed quotation including product specifications, pricing, lead time, and shipping options -- typically within 24 hours.
Trusted by contractors and distributors in 50+ countries
Send Us Your Requirements
About Our Ground Protection
Mat Manufacturing
We are a vertically integrated manufacturer of HDPE and UHMWPE ground protection mats, supplying contractors, equipment rental companies, event organizers, and industrial operators across North America, Europe, Australia, the Middle East, and Southeast Asia. Our manufacturing facility produces over 50,000 ground protection mats per month, with the capacity to handle large project orders and OEM production runs.
Our product range covers every ground protection need: from lightweight 0.75-inch HDPE panels for turf and grass protection, to 1.5-inch ultra-heavy-duty UHMWPE mats rated for the largest crawler cranes and piling rigs. All products are manufactured from virgin-grade resin, UV stabilized, and available in custom dimensions, colors, and surface patterns.
Whether you need 50 mats for a one-off event or 5,000 mats for a long-term infrastructure project, our export sales team will provide a competitive, detailed quotation with full logistics support. Contact us today to discuss your requirements.
English
