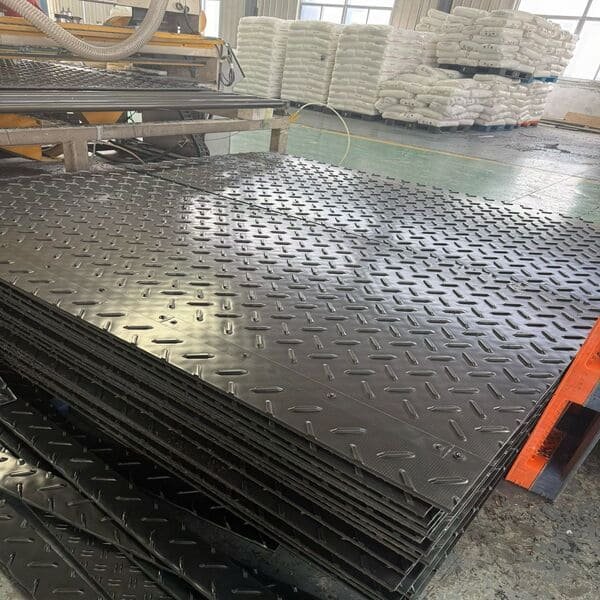

Track Mats for Heavy Equipment

Bog & Swamp Track Mats for Heavy Equipment

Track mats for heavy equipment are needed where normal passage of the equipment will result in deep grooves, surface destruction or unstable approach path. Made of HDPE and UHMWPE based plastic materials, these mats are commonly used for constructing temporary paths and work areas in muddy conditions, water-saturated lawns, loose dirt piles, and other poor ground. They are always more durable and weather-resistant than plywood, ideal for repeated field use.

WhatsApp Us

Quality Certified

Global Shipping

Custom OEM/ODM

Product Specifications

Detailed technical specifications

Key Features & Advantages

Built for tracked and wheeled equipment to provide a more stable route across soft ground or sensitive surfaces.
HDPE for reusable jobsite access mats; stronger UHMWPE for higher abrasion and tougher conditions.
Spread the load and create a cleaner access path to reduce tear up turf, subgrade, or finished areas.
Do not swell with water like wood, can be lifted, moved, stored, and used on the next project.
Customized surface patterns help balance machine grip and ground contact.
Straight runs, turning sections, and wider platforms can be built with different connector systems.
Hand holes and molded handles for easier deployment and reposition.

Applications

Temporary tracks used by excavators, skid-steer loaders, dump trucks, and other service vehicles.
Access in soft ground on utility, civil, and infrastructural construction sites.
Access without damaging turf and lawns on areas through which machinery will travel.
Access over muddy or washed out ground during construction.
Access across delicate ground with low impact to prevent ruts or compaction.

Quality Assurance

Certified for Global Standards

Each batch undergoes thorough inspection on the shop floor. Raw material is tested upon arrival, as well as finished parts upon completion. Anything failing to conform to specifications is not shipped out.

ISO 9001 Quality Management

ISO 9001:2015 certification requires written processes, production control measures, and traceability of the process from initial raw material to finished part. More critically, ISO helps us maintain tolerances across multiple batches, rather than just in theory.

Food-Grade FDA Compliance

In cases of applications involving food production, only selected types of HDPE and UHMWPE materials which conform to FDA food-grade standards are used. These grades are usually utilized in cutting surfaces, guides, and wear parts.

RoHS Compliant Manufacturing

Materials comply with RoHS environmental regulations in terms of substance content restrictions. This is ensured by monitoring the components of the material, rather than the finished part.

Traceable Material Test Reports (MTR)

Material test reports available upon request include mechanical properties such as tensile strength and impact value, as well as wear information and dimensional checks.

Frequently Asked Questions

What is the maximum load capacity of a standard 4×8 ground protection mat?

That depends on the mat thickness, the equipment footprint, and the condition of the subgrade. In practice, load performance is tied to both the mat and the ground below it, so equipment type and site condition should always be considered together.

What is the best connection system for linking ground protection mats together?

That depends on the layout. Two-way connectors are often used for straight temporary access routes, while four-way connectors are more suitable for wider platforms and more complex site layouts. For frequent deployment and recovery, stronger steel connector systems are usually preferred.

Can spliced joints withstand lateral squeezing force from heavy tracks?

Yes. Joint positions can stay intact without dislocation or cracking during lateral track pressure.

Can these track mats stop equipment tracks from spinning idly on soft ground?

Yes. We provide anti-skid textured surface pattern that locks tightly with track patterns. It effectively eliminates idle rotation, ensuring steady forward movement of heavy machinery.

Will frequent back-and-forth track rolling cause layered peeling on the mat surface?

Adopting integral molding technology, these protection mats do not have internal separation layers. Repeated rolling friction will not lead to surface peeling or material shedding.

Are the mats suitable for heavy machinery traveling on inclined construction ramps?

Yes. Our heavy equipment track mats provide reliable lateral holding force. It keeps stable laying and safe driving when the equipment climbs or descends sloped passages.

Can the mats block muddy sediment carried by tracks from contaminating clean working zones?

The dense surface intercepts mud and gravel attached on tracks. It avoids bringing dirt into finished construction areas and maintains site cleanliness.

Does drastic temperature swing make the mat rigid and affect driving comfort?

The HDPE & UHMWPE material retains proper toughness under varying temperatures. It will not turn overly stiff or brittle, keeping consistent driving and supporting performance.

Send Us a Quick Inquiry

Get a response from our team within one business day.

JavaScript is disabled. Please email us directly at sales@example.com.

Customer Feedback

5/5

Honestly, they completely blow plywood out of the water. Zero splintering, they take a massive beating from our heavy trucks, and they’re still good to go

Shane Gallagher

5/5

These heavy-duty pads are the real deal for mud season. Kept our bucket trucks moving smooth without tearing up the yard.

Brent MacNeil

5/5

Fair dinkum, these plastic road mats are tough as nails. Saved us a heap of trouble on a bloody muddy site out in the sticks.

Mitch

Ready to Order or Need a Custom Quote?

Our team is ready to help you with product selection, specifications, and custom manufacturing solutions.

Browse All Products

Chat on WhatsApp

No.	Size (mm)	Thickness with Texture (mm)	Weight (kg)	Dynamic Load (Vehicles / Machinery) (ton)	Static Load (Equipment / Outriggers) (ton)	Typical Application
1	1200 x 2400 x 12.7	17.7（one side)	39	20–30	50	Small vehicles, light equipment
2	1220 x 2440 x 12.7	22.7（two sides)	44	20–30	50	Small vehicles, light equipment
3	1000 x 2000 x 10	20（two sides)	24	20–30	50	Small vehicles, light equipment
4	1100 x 2900 x 12.7	22.7（two sides)	47	20–30	50	Small vehicles, light equipment
5	1500 x 3000 x 15	25（two sides)	77	30–40	60	Medium trucks, excavators
6	2000 x 5900 x 28	38（two sides)	354	40–50	80	Heavy trucks, mixer trucks
7	2000 x 5800 x 25	35（two sides)	313	60–80	120	Heavy engineering, cranes
8	2500 x 3000 x 38	48（two sides)	300	80–100	160	Oilfield, mining heavy equipment
9	2000 x 4000 x 38	48（two sides)	320	80–100	160	Oilfield, mining heavy equipment
10	2000 x 4500 x 38	48（two sides)	360	80–100	160	Oilfield, mining heavy equipment
11	2500 x 3000 x 25	35（two sides)	203	60–80	120	Heavy engineering, cranes
12	2000 x 2000 x 30	40（two sides)	192	60–80	120	Heavy engineering, cranes
13	1000 x 2000 x 30	40（two sides)	64	60–80	120	Heavy engineering, cranes
14	2000 x 2000 x 50	60（two sides)	208	100–150	200+	Ultra heavy machinery, crawler equipment
15	2000 x 5000 x 60	70（two sides)	620	150–220	300+	Extreme loads, long-term use

HDPE & UHMWPE Specifications:
Property	Values
Property	HDPE	UHMWPE
Tensile strength at yield	15MPa	22MPa
Elongation at Break	200%	350%
Modulus of elasticity in tension	800MPa	700MPa
Modulus of elasticity in flexure	750MPa	650MPa
Impact strength	≥80kJ/m2	≥120kJ/m2
Creep rupture strength after 1000hrs with static load	7.0MPa	8.5MPa
Time yield limit for 1% elongation after 1000hrs	3.8MPa	4.2MPa
Ball indentation hardness	120N/mm2	130N/mm2
Shore hardness D	55~60	60~65
Glass transition temperature	-120℃	-125℃
Crystalline melting point	120~125℃	135~138℃
Service temperature (short term)	-100~+80℃	-200~+90℃
Service temperature (long term)	-80~+70℃	-150~+80℃
Water absorption @ saturation @ 23°c	≤0.01%	≤0.01%
Volume Resistivity UV Stabilized	≥1013Ω·cm	≥1014Ω·cm
