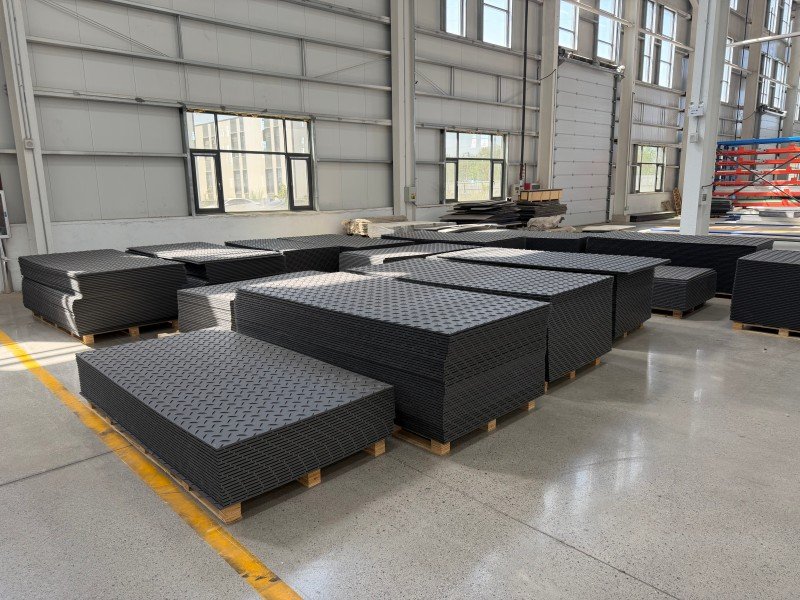

Ground Guard Mats

120 Ton Load Capacity for Construction & Military Access

Ground protection mats, also referred to as ground protection matting, are employed to construct temporary walkways to provide protection to softer surfaces from the wear and tear caused by vehicles. These mats is widely manufactured using HDPE and UHMWPE because of their attributes of durability and resistance to weather conditions. They offer the traction and repeated-use performance for construction access, utility work, landscaping, events, and industrial service routes.

WhatsApp Us

Quality Certified

Global Shipping

Custom OEM/ODM

Product Specifications

Detailed technical specifications

Key Features & Advantages

HDPE for general ground protection and repeated outdoor use, while UHMWPE for higher abrasion resistance and tougher service conditions matter more.
Designed for temporary access and surface protection, reduce rutting, sinkage and surface damage.
Better long-term use value than plywood, do not absorb water.
Built to be lifted, moved, and reused across multiple jobs.
Aggressive tread and dual-surface, improve grip while still offering more controlled contact with the ground.
Two-way, four-way, and bolt-style connector systems are available to create a stable temporary roadway.
Portable heavy-duty formats available, remaining manageable for field handling in many project setups.

Applications

Site temporary access through mud, grass, and soft soils.
Protection of the ground in civil engineering, groundwork, and utility maintenance.
Pathways for wheeling and chosen tracked machinery.
Turf and soil protection for events, institutions, and managed landscapes.
Portion of temporary roadway for plant and service vehicle access on unsound ground.

Quality Assurance

Certified for Global Standards

Each batch undergoes thorough inspection on the shop floor. Raw material is tested upon arrival, as well as finished parts upon completion. Anything failing to conform to specifications is not shipped out.

ISO 9001 Quality Management

ISO 9001:2015 certification requires written processes, production control measures, and traceability of the process from initial raw material to finished part. More critically, ISO helps us maintain tolerances across multiple batches, rather than just in theory.

Food-Grade FDA Compliance

In cases of applications involving food production, only selected types of HDPE and UHMWPE materials which conform to FDA food-grade standards are used. These grades are usually utilized in cutting surfaces, guides, and wear parts.

RoHS Compliant Manufacturing

Materials comply with RoHS environmental regulations in terms of substance content restrictions. This is ensured by monitoring the components of the material, rather than the finished part.

Traceable Material Test Reports (MTR)

Material test reports available upon request include mechanical properties such as tensile strength and impact value, as well as wear information and dimensional checks.

Frequently Asked Questions

What is the difference between HDPE and UHMWPE ground protection mats?

HDPE is the more common choice for general-duty access, turf protection and cost-controlled projects. UHMWPE offers higher wear resistance and better performance in harsher, more abrasive conditions. So the latter is often selected for heavier-duty equipment routes and tougher service environments.

What traction surface patterns are best for pedestrian safety versus vehicle traction?

Diamond, cleat, or V-pattern surfaces. Lower-profile or dual-surface designs are preferred when the route also needs better pedestrian footing or more controlled contact with finished ground.

What is the best connection system for linking ground protection mats together?

Depend on how the mats will be used. For straight temporary routes, two-way locking connectors are common. For larger connected sections or changing layouts, four-way and bolt-style systems are more flexible.

Can ground guard mats resist piercing damage from sharp branches and hard stones?

Their compact integrated body features great anti-piercing performance. Sharp branches and angular gravel cannot pierce through the mat to damage the ground beneath.

Are these mats ideal for temporary access routes in forest and woodland areas?

Yes. They fit natural woodland terrain perfectly. They form smooth pathways for passage without destroying the original shallow root layer of wild plants.

Does shaded humid woodland environment speed up material aging of the mats?

The raw materials are optimized for low-light damp environments. They will not turn brittle or lose toughness prematurely even under long-term shade and moisture.

Will large day and night temperature differences cause edge warping of the mats?

With a stable thermal balance formula, the mats barely deform under frequent temperature changes, edges stay closely attached to the ground.

Is it easy to clear away humus soil and forest dirt on the mat surface?

Yes, easy to clean. The mats with non-adhesive surface structure repel sticky woodland humus. Accumulated dirt can be washed or swept away effortlessly.

Send Us a Quick Inquiry

Get a response from our team within one business day.

JavaScript is disabled. Please email us directly at sales@example.com.

Customer Feedback

5/5

Honestly, they completely blow plywood out of the water. Zero splintering, they take a massive beating from our heavy trucks, and they’re still good to go

Shane Gallagher

5/5

These heavy-duty pads are the real deal for mud season. Kept our bucket trucks moving smooth without tearing up the yard.

Brent MacNeil

5/5

Fair dinkum, these plastic road mats are tough as nails. Saved us a heap of trouble on a bloody muddy site out in the sticks.

Mitch

Ready to Order or Need a Custom Quote?

Our team is ready to help you with product selection, specifications, and custom manufacturing solutions.

Browse All Products

Chat on WhatsApp

No.	Size (mm)	Thickness with Texture (mm)	Weight (kg)	Dynamic Load (Vehicles / Machinery) (ton)	Static Load (Equipment / Outriggers) (ton)	Typical Application
1	1200 x 2400 x 12.7	17.7（one side)	39	20–30	50	Small vehicles, light equipment
2	1220 x 2440 x 12.7	22.7（two sides)	44	20–30	50	Small vehicles, light equipment
3	1000 x 2000 x 10	20（two sides)	24	20–30	50	Small vehicles, light equipment
4	1100 x 2900 x 12.7	22.7（two sides)	47	20–30	50	Small vehicles, light equipment
5	1500 x 3000 x 15	25（two sides)	77	30–40	60	Medium trucks, excavators
6	2000 x 5900 x 28	38（two sides)	354	40–50	80	Heavy trucks, mixer trucks
7	2000 x 5800 x 25	35（two sides)	313	60–80	120	Heavy engineering, cranes
8	2500 x 3000 x 38	48（two sides)	300	80–100	160	Oilfield, mining heavy equipment
9	2000 x 4000 x 38	48（two sides)	320	80–100	160	Oilfield, mining heavy equipment
10	2000 x 4500 x 38	48（two sides)	360	80–100	160	Oilfield, mining heavy equipment
11	2500 x 3000 x 25	35（two sides)	203	60–80	120	Heavy engineering, cranes
12	2000 x 2000 x 30	40（two sides)	192	60–80	120	Heavy engineering, cranes
13	1000 x 2000 x 30	40（two sides)	64	60–80	120	Heavy engineering, cranes
14	2000 x 2000 x 50	60（two sides)	208	100–150	200+	Ultra heavy machinery, crawler equipment
15	2000 x 5000 x 60	70（two sides)	620	150–220	300+	Extreme loads, long-term use
