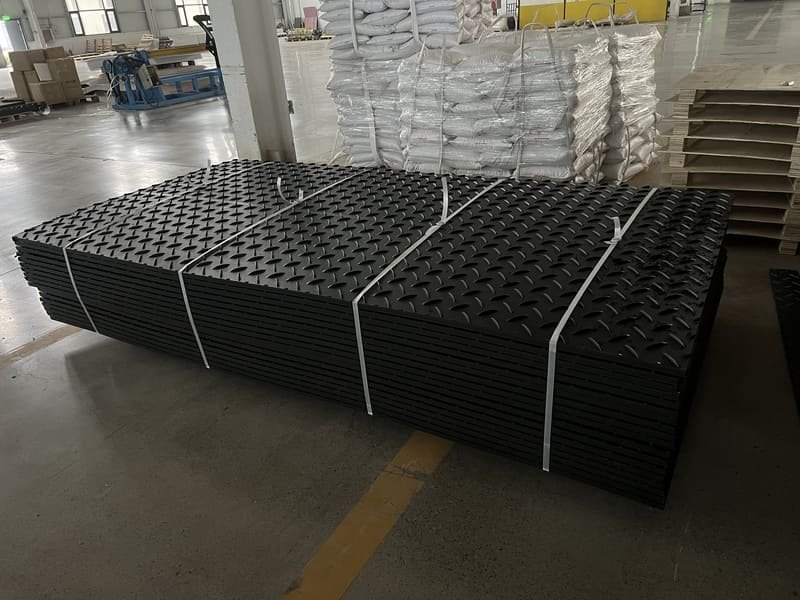

Groundworks Protection Mats

Name: Groundworks Protection Mats
Brand: BKM

Key Features & Advantages

Create temporary roadways, access routes, work pads, and storage areas on active sites.

Minimize mud damage, surface rutting, and ground disturbance in repeated traffic areas.

Heavy-load positioning up to 120 & Suitable for repeated outdoor use.

Flexible designs help successfully lay on uneven or sloping ground.

Connector systems are available to link the mats into a larger work surface.

Hand holes are included to improve unloading, carrying, and deployment.

Applications

Access to the ground during groundwork and civil engineering operations.

Protection of the ground for plants, vehicles, and equipment used in construction works.

Trackways and work platforms can be constructed using several interconnected mats.

Storage facilities, pedestrian walkways, and temporary construction areas where ground damage is a concern.

Sloped or undulating terrain where matting needs to follow the ground contours more closely.

Jul 8, 2026

450 Mats for a 1,500 ft Temporary Road: How BKM Supported a Mississippi Riverbank Earthwork Project

The customer was working on a riverbank earthwork project near the Mississippi River. The job required the movement of about 300,000 cubic meters of soil. Dump trucks, excavators, forklifts, and other site vehicles had to move back and forth across soft riverbank ground every day. The original plan was to build a temporary haul road […]

Read Case Study

Jul 8, 2026

A Removable HDPE Access Road Helped a Forestry Contractor Keep the Project Moving

The customer was a forestry and outdoor construction contractor in the United States. His project was inside a forest area, where the ground was soft, uneven, and difficult to access after rain. This was not a jobsite where one fixed road could solve everything. As the work moved deeper into the forest, the access route […]

Read Case Study

Jul 8, 2026

14 Days Saved in Calgary: How BKM Gray HDPE Mats Kept a Residential Project Moving Through Rain and Thaw

The customer was working on a large residential construction project in Panorama Hills, Calgary. The site entered a difficult stage during the spring and summer rainy season. Snowmelt and continuous rain made the backfilled soil soft and muddy. At the same time, civil work, landscaping work, material delivery, and model-home area preparation were happening together. […]

Read Case Study

Certified for Global Standards

Each batch undergoes thorough inspection on the shop floor. Raw material is tested upon arrival, as well as finished parts upon completion. Anything failing to conform to specifications is not shipped out.

ISO 9001 Quality Management

ISO 9001:2015 certification requires written processes, production control measures, and traceability of the process from initial raw material to finished part. More critically, ISO helps us maintain tolerances across multiple batches, rather than just in theory.

Food-Grade FDA Compliance

In cases of applications involving food production, only selected types of HDPE and UHMWPE materials which conform to FDA food-grade standards are used. These grades are usually utilized in cutting surfaces, guides, and wear parts.

RoHS Compliant Manufacturing

Materials comply with RoHS environmental regulations in terms of substance content restrictions. This is ensured by monitoring the components of the material, rather than the finished part.

Traceable Material Test Reports (MTR)

Material test reports available upon request include mechanical properties such as tensile strength and impact value, as well as wear information and dimensional checks.

No	Size (ft & in)	Size(mm)	Texture Thickness (mm)	Weight (kg)	Effective area (m2)	Dynamic Load Vehicles (ton)
1	4'x 8'x 1/2″	1220 x 2440 x 12.7	17.7（one side)	38	2.98	20-30
2	4'x 8'x 1/2″	1220 x 2440 x 12.7	22.7（two sides)	41	2.98	20-30
3	3.94'x7.87 'x 1/2″	1200 x 2400 x 12.7	17.7（one side)	37	2.88	20-30
4	3.28'x6.56'x 1/2″	1000 x 2000 x 12.7	17.7（one side)	26	2.00	20-30
5	3.28'x6.56'x 0.39″	1000 x 2000 x 10	20（two sides)	22	2.00	20-30
6	3.61'x9.51'x1/2″	1100 x 2900 x 12.7	22.7（two sides)	44	3.20	20-30
7	4.92'x9.84'x0.59″	1500 x 3000 x 15	25（two sides)	74	4.50	30-40
8	6.56'x19.03'x0.98″	2000 x 5800 x 25	35（two sides)	302	11.60	60-80
9	6.56'x19.36'x1.1″	2000 x 5900 x 28	38（two sides)	345	11.80	40-50
10	8.20'x9.84'x1.5″	2500 x 3000 x 38	48（two sides)	293	7.50	80-100
11	6.56'x13.12'x1.5″	2000 x 4000 x38	48（two sides)	312	8.00	80-100
12	6.56' x14.76'x1.5″	2000 x 4500 x 38	48（two sides)	351	9.00	80-100
13	8.20'x9.84'x0.98″	2500 x 3000 x 25	35（two sides)	195	7.50	60-80
14	8.37'x9.84'x1.5″	2550 x 3000 x 38	48（two sides)	300	7.65	60-80
15	8.37'x9.84'x1.6″	2550 x 3000 x 40	50（two sides)	315	7.65	60-80
16	6.56'x 6.56'x1.18″	2000 x 2000 x 30	40（two sides)	124	4.00	60-80
17	3.28'x6.56'x1.18″	1000 x 2000 x 30	40（two sides)	62	2.00	60-80
18	6.56'x6.56'x2″	2000 x 2000 x 50	60（two sides)	204	4.00	100-150
19	6.56'x16.40'x2.36″	2000 x 5000 x 60	70（two sides)	610	10.00	150-220

No	Size (ft & in)	Size(mm)	Texture Thickness (mm)	Static Load Equipment (ton)	Typical Application
1	4'x 8'x 1/2″	1220 x 2440 x 12.7	17.7（one side)	50	Small vehicles, light equipment
2	4'x 8'x 1/2″	1220 x 2440 x 12.7	22.7（two sides)	50	Small vehicles, light equipment
3	3.94'x7.87 'x 1/2″	1200 x 2400 x 12.7	17.7（one side)	50	Small vehicles, light equipment
4	3.28'x6.56'x 1/2″	1000 x 2000 x 12.7	17.7（one side)	50	Small vehicles, light equipment
5	3.28'x6.56'x 0.39″	1000 x 2000 x 10	20（two sides)	50	Small vehicles, light equipment
6	3.61'x9.51'x1/2″	1100 x 2900 x 12.7	22.7（two sides)	50	Small vehicles, light equipment
7	4.92'x9.84'x0.59″	1500 x 3000 x 15	25（two sides)	60	Medium trucks, excavators
8	6.56'x19.03'x0.98″	2000 x 5800 x 25	35（two sides)	120	Heavy trucks, mixer trucks
9	6.56'x19.36'x1.1″	2000 x 5900 x 28	38（two sides)	80	Heavy trucks, mixer trucks
10	8.20'x9.84'x1.5″	2500 x 3000 x 38	48（two sides)	160	Oilfield, mining heawy equipment
11	6.56'x13.12'x1.5″	2000 x 4000 x38	48（two sides)	160	Oilfield, mining heawy equipment
12	6.56' x14.76'x1.5″	2000 x 4500 x 38	48（two sides)	160	Oilfield, mining heawy equipment
13	8.20'x9.84'x0.98″	2500 x 3000 x 25	35（two sides)	120	Heavy engineering, cranes
14	8.37'x9.84'x1.5″	2550 x 3000 x 38	48（two sides)	120	Heavy engineering, cranes
15	8.37'x9.84'x1.6″	2550 x 3000 x 40	50（two sides)	120	Heavy engineering, cranes
16	6.56'x 6.56'x1.18″	2000 x 2000 x 30	40（two sides)	120	Heavy engineering, cranes
17	3.28'x6.56'x1.18″	1000 x 2000 x 30	40（two sides)	120	Heavy engineering, cranes
18	6.56'x6.56'x2″	2000 x 2000 x 50	60（two sides)	200+	Ultra heavy machinery,crawlerequipment
19	6.56'x16.40'x2.36″	2000 x 5000 x 60	70（two sides)	300+	Extreme loads, long-term use

HDPE & UHMWPE Specifications:
Property	Values
Property	HDPE	UHMWPE
Tensile strength at yield	15MPa	22MPa
Elongation at Break	200%	350%
Modulus of elasticity in tension	800MPa	700MPa
Modulus of elasticity in flexure	750MPa	650MPa
Impact strength	≥80kJ/m2	≥120kJ/m2
Creep rupture strength after 1000hrs with static load	7.0MPa	8.5MPa
Time yield limit for 1% elongation after 1000hrs	3.8MPa	4.2MPa
Ball indentation hardness	120N/mm2	130N/mm2
Shore hardness D	55~60	60~65
Glass transition temperature	-120℃	-125℃
Crystalline melting point	120~125℃	135~138℃
Service temperature (short term)	-100~+80℃	-200~+90℃
Service temperature (long term)	-80~+70℃	-150~+80℃
Water absorption @ saturation @ 23°c	≤0.01%	≤0.01%
Volume Resistivity UV Stabilized	≥1013Ω·cm	≥1014Ω·cm
