Key Features & Advantages

• Separate concurrent demand from later reuse. Mark the routes and work fronts that must operate at the same time. Count panels committed to the main access road separately from stock that can be recovered. Your purchase schedule should not allocate the same panel to two areas merely because the overall project is divided into phases.
• Use a repeatable solid UHMWPE configuration. Our reference formats are 3000 × 2500 mm at approximately 293 kg and 4000 × 2000 mm at approximately 312 kg. Both have a 38 mm body and a 48 mm overall textured profile. Record the selected drawing and hardware interface so later purchases can be compared consistently.
• Convert area into a workable layout. Nominal face areas of 7.5 m² and 8.0 m² support initial planning, but final quantities depend on complete rows, corners, entry transitions and passing areas. Send layouts for each active work front. An overall square-meter requirement can conceal different panel counts and connection schedules.

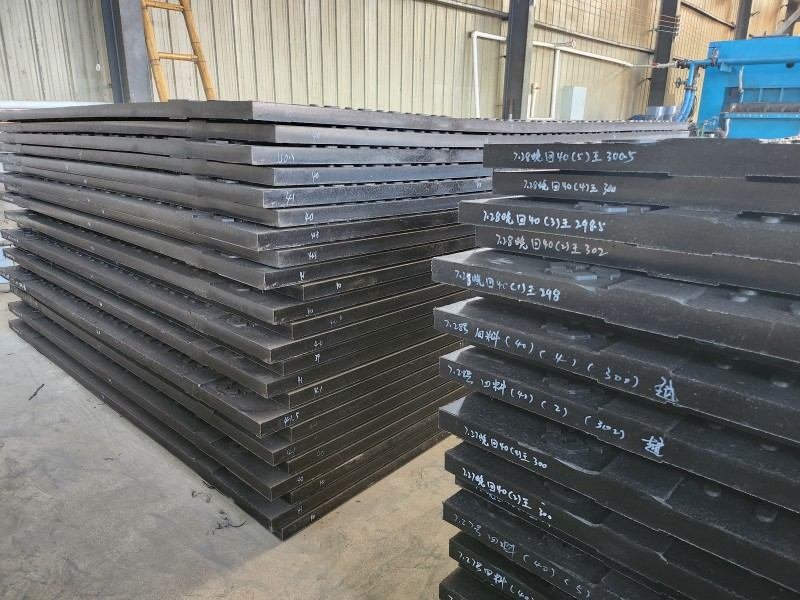

• Buy panels and compatible hardware as one set. We review the connector schedule, replacement components and identification with the panel order. Include drawings of any existing inventory before requesting matching additions. Similar footprint or tread appearance does not establish that different panel families can share connections.
• Schedule recovery before reallocating stock. Allow for removal, transport, cleaning, inspection and replacement of damaged or missing components. Keep a supported exit for your recovery equipment until the final section is removed. Recovered panels become available for the next phase only after condition and new-route suitability have been checked.

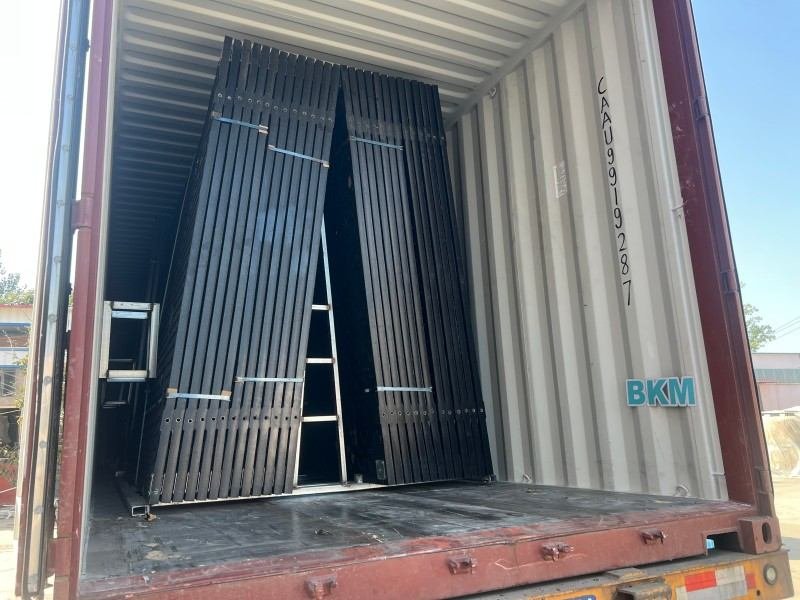

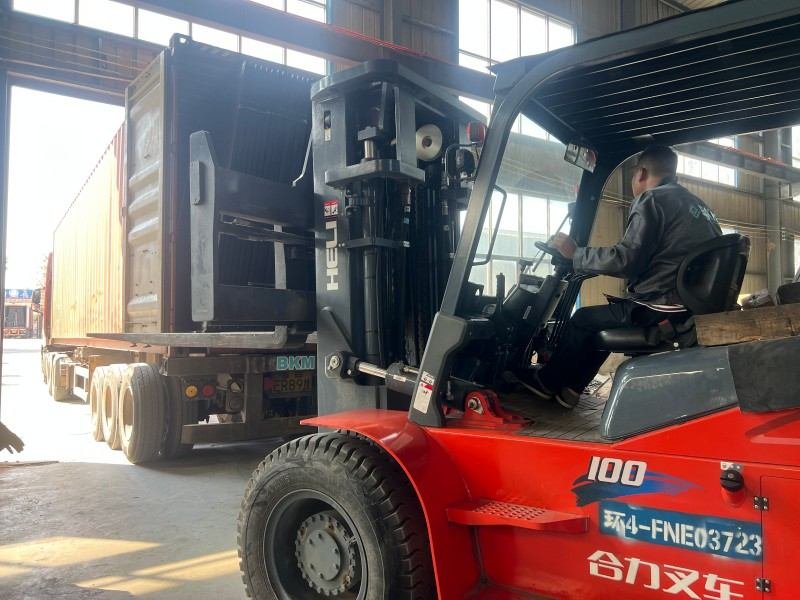

• Tie shipments to receiving capability. These large panels require mechanical handling. Give us the destination for each proposed shipment, available unloading equipment and staging limitations. We review pack arrangement and identification against the confirmed order; panel-only weight is not the gross shipping weight, and nominal area does not establish container capacity.
• Compare ownership costs without assumed savings. Include freight, ground preparation, placement, inspections, recovery, cleaning and storage alongside panel price. Plan around your expected suitable future uses, not an unsupported fixed service life. We supply mats for purchase; local rental and project installation are separate arrangements.
• Keep procurement scope clear when operations change. A new vehicle, a different work front or a change from travel to machine operation needs review. Retain the assigned duty with the panel record and send revised axle or track details when equipment changes. These access panels are not an automatic replacement for dragline foundations, outrigger pads or structural crossings.

Applications

• Multi-front infrastructure construction. Allocate complete panel-and-connector sets to delivery and equipment routes that operate concurrently. Keep the principal access lane in service while separate stock moves with released work sections. Review ground and traffic at each receiving front rather than using a project-wide loading assumption.
• Sequential utility and pipeline sections. Recover approved access panels from completed sections and prepare them for the next assessed route. Plan passing places, junctions and the order in which panels become available. Open excavations need separate crossings and must not be included as unsupported mat coverage.
• Phased industrial and energy developments. Coordinate reusable access between receiving points and active construction areas before permanent roads are ready. Match deliveries to available mechanical handling and space for stock. Keep crane setup and other concentrated support duties separate from the traveling-access package.

Solid UHMWPE references for phased purchasing and mechanical-handling planning. Record the selected format and connector drawing for any later replenishment.

Face area and panel weight support preliminary planning only; confirm the installed layout, packing and route loading separately. The related riverbank case demonstrates recoverable access using a different HDPE format, not validation of these UHMWPE panels or guaranteed project savings.
