UV-Resistant Ground Mats for Outdoor Projects

Name: UV-Resistant Ground Mats
Brand: BKM

Parameter	Portable HDPE reference	Heavy solid UHMWPE reference
Panel dimensions	1000 × 2000 mm	2500 × 3000 mm
Body thickness	10 mm	38 mm
Overall thickness with double sided texture	20 mm	48 mm
Reference weight	22 kg	293 kg
Nominal footprint	2.00 m²	7.50 m²
Outdoor material requirement	UV-stabilized option to be specified	UV-stabilized option to be specified
Exposure information	Site location and planned duration	Site location and planned duration

Parameter

Portable HDPE reference

Heavy solid UHMWPE reference

Panel dimensions

1000 × 2000 mm

2500 × 3000 mm

Body thickness

10 mm

38 mm

Overall thickness with double sided texture

20 mm

48 mm

Reference weight

22 kg

293 kg

Nominal footprint

2.00 m²

7.50 m²

Outdoor material requirement

UV-stabilized option to be specified

Exposure information

Site location and planned duration

heavy duty plastic pads for maximum stability

Jul 7, 2026

100 Mats First, Sold Out in One Month: How a North American Distributor Tested BKM HDPE Ground Protection Mats

The customer was a North American distributor selling construction and industrial supplies to contractors, landscapers, rental companies, and temporary access users. Ground protection mats were a new product line for him. He did not want to start with a full container before testing the market. His main concerns were: * Which size would be easier to […]

Read Case Study

Jul 8, 2026

14 Days Saved in Calgary: How BKM Gray HDPE Mats Kept a Residential Project Moving Through Rain and Thaw

The customer was working on a large residential construction project in Panorama Hills, Calgary. The site entered a difficult stage during the spring and summer rainy season. Snowmelt and continuous rain made the backfilled soil soft and muddy. At the same time, civil work, landscaping work, material delivery, and model-home area preparation were happening together. […]

Read Case Study

bridge construction plastic outrigger pads

Jul 8, 2026

450 Mats for a 1,500 ft Temporary Road: How BKM Supported a Mississippi Riverbank Earthwork Project

The customer was working on a riverbank earthwork project near the Mississippi River. The job required the movement of about 300,000 cubic meters of soil. Dump trucks, excavators, forklifts, and other site vehicles had to move back and forth across soft riverbank ground every day. The original plan was to build a temporary haul road […]

Read Case Study

Mar 25, 2026

600 Mats Delivered in 5 Days: How BKM Helped Protect a Music Festival in Daegu

The customer was an event contractor in Daegu, South Korea. He was preparing a music festival on a grass site. Before the event opened, service vehicles, equipment carts, staff, and setup crews all needed to move across the grass. The schedule was fixed, so the customer could not wait for better weather or rebuild the […]

Read Case Study

Certified for Global Standards

Each batch undergoes thorough inspection on the shop floor. Raw material is tested upon arrival, as well as finished parts upon completion. Anything failing to conform to specifications is not shipped out.

ISO 9001 Quality Management

ISO 9001:2015 certification requires written processes, production control measures, and traceability of the process from initial raw material to finished part. More critically, ISO helps us maintain tolerances across multiple batches, rather than just in theory.

Food-Grade FDA Compliance

In cases of applications involving food production, only selected types of HDPE and UHMWPE materials which conform to FDA food-grade standards are used. These grades are usually utilized in cutting surfaces, guides, and wear parts.

RoHS Compliant Manufacturing

Materials comply with RoHS environmental regulations in terms of substance content restrictions. This is ensured by monitoring the components of the material, rather than the finished part.

Traceable Material Test Reports (MTR)

Material test reports available upon request include mechanical properties such as tensile strength and impact value, as well as wear information and dimensional checks.

No	Size (ft & in)	Size(mm)	Texture Thickness (mm)	Weight (kg)	Effective area (m2)	Dynamic Load Vehicles (ton)
1	4'x 8'x 1/2″	1220 x 2440 x 12.7	17.7（one side)	38	2.98	20-30
2	4'x 8'x 1/2″	1220 x 2440 x 12.7	22.7（two sides)	41	2.98	20-30
3	3.94'x7.87 'x 1/2″	1200 x 2400 x 12.7	17.7（one side)	37	2.88	20-30
4	3.28'x6.56'x 1/2″	1000 x 2000 x 12.7	17.7（one side)	26	2.00	20-30
5	3.28'x6.56'x 0.39″	1000 x 2000 x 10	20（two sides)	22	2.00	20-30
6	3.61'x9.51'x1/2″	1100 x 2900 x 12.7	22.7（two sides)	44	3.20	20-30
7	4.92'x9.84'x0.59″	1500 x 3000 x 15	25（two sides)	74	4.50	30-40
8	6.56'x19.03'x0.98″	2000 x 5800 x 25	35（two sides)	302	11.60	60-80
9	6.56'x19.36'x1.1″	2000 x 5900 x 28	38（two sides)	345	11.80	40-50
10	8.20'x9.84'x1.5″	2500 x 3000 x 38	48（two sides)	293	7.50	80-100
11	6.56'x13.12'x1.5″	2000 x 4000 x38	48（two sides)	312	8.00	80-100
12	6.56' x14.76'x1.5″	2000 x 4500 x 38	48（two sides)	351	9.00	80-100
13	8.20'x9.84'x0.98″	2500 x 3000 x 25	35（two sides)	195	7.50	60-80
14	8.37'x9.84'x1.5″	2550 x 3000 x 38	48（two sides)	300	7.65	60-80
15	8.37'x9.84'x1.6″	2550 x 3000 x 40	50（two sides)	315	7.65	60-80
16	6.56'x 6.56'x1.18″	2000 x 2000 x 30	40（two sides)	124	4.00	60-80
17	3.28'x6.56'x1.18″	1000 x 2000 x 30	40（two sides)	62	2.00	60-80
18	6.56'x6.56'x2″	2000 x 2000 x 50	60（two sides)	204	4.00	100-150
19	6.56'x16.40'x2.36″	2000 x 5000 x 60	70（two sides)	610	10.00	150-220

No	Size (ft & in)	Size(mm)	Texture Thickness (mm)	Static Load Equipment (ton)	Typical Application
1	4'x 8'x 1/2″	1220 x 2440 x 12.7	17.7（one side)	50	Small vehicles, light equipment
2	4'x 8'x 1/2″	1220 x 2440 x 12.7	22.7（two sides)	50	Small vehicles, light equipment
3	3.94'x7.87 'x 1/2″	1200 x 2400 x 12.7	17.7（one side)	50	Small vehicles, light equipment
4	3.28'x6.56'x 1/2″	1000 x 2000 x 12.7	17.7（one side)	50	Small vehicles, light equipment
5	3.28'x6.56'x 0.39″	1000 x 2000 x 10	20（two sides)	50	Small vehicles, light equipment
6	3.61'x9.51'x1/2″	1100 x 2900 x 12.7	22.7（two sides)	50	Small vehicles, light equipment
7	4.92'x9.84'x0.59″	1500 x 3000 x 15	25（two sides)	60	Medium trucks, excavators
8	6.56'x19.03'x0.98″	2000 x 5800 x 25	35（two sides)	120	Heavy trucks, mixer trucks
9	6.56'x19.36'x1.1″	2000 x 5900 x 28	38（two sides)	80	Heavy trucks, mixer trucks
10	8.20'x9.84'x1.5″	2500 x 3000 x 38	48（two sides)	160	Oilfield, mining heawy equipment
11	6.56'x13.12'x1.5″	2000 x 4000 x38	48（two sides)	160	Oilfield, mining heawy equipment
12	6.56' x14.76'x1.5″	2000 x 4500 x 38	48（two sides)	160	Oilfield, mining heawy equipment
13	8.20'x9.84'x0.98″	2500 x 3000 x 25	35（two sides)	120	Heavy engineering, cranes
14	8.37'x9.84'x1.5″	2550 x 3000 x 38	48（two sides)	120	Heavy engineering, cranes
15	8.37'x9.84'x1.6″	2550 x 3000 x 40	50（two sides)	120	Heavy engineering, cranes
16	6.56'x 6.56'x1.18″	2000 x 2000 x 30	40（two sides)	120	Heavy engineering, cranes
17	3.28'x6.56'x1.18″	1000 x 2000 x 30	40（two sides)	120	Heavy engineering, cranes
18	6.56'x6.56'x2″	2000 x 2000 x 50	60（two sides)	200+	Ultra heavy machinery,crawlerequipment
19	6.56'x16.40'x2.36″	2000 x 5000 x 60	70（two sides)	300+	Extreme loads, long-term use

HDPE & UHMWPE Specifications:
Property	Values
Property	HDPE	UHMWPE
Tensile strength at yield	15MPa	22MPa
Elongation at Break	200%	350%
Modulus of elasticity in tension	800MPa	700MPa
Modulus of elasticity in flexure	750MPa	650MPa
Impact strength	≥80kJ/m2	≥120kJ/m2
Creep rupture strength after 1000hrs with static load	7.0MPa	8.5MPa
Time yield limit for 1% elongation after 1000hrs	3.8MPa	4.2MPa
Ball indentation hardness	120N/mm2	130N/mm2
Shore hardness D	55~60	60~65
Glass transition temperature	-120℃	-125℃
Crystalline melting point	120~125℃	135~138℃
Service temperature (short term)	-100~+80℃	-200~+90℃
Service temperature (long term)	-80~+70℃	-150~+80℃
Water absorption @ saturation @ 23°c	≤0.01%	≤0.01%
Volume Resistivity UV Stabilized	≥1013Ω·cm	≥1014Ω·cm

UV-Resistant Ground Mats

UV-stabilized material options for repeated outdoor access

Product Specifications

Key Features & Advantages

Applications

Technical Data

Ground Protection Mats Size & Load Capacity Comparison

Customization Options

Handling and connector holes

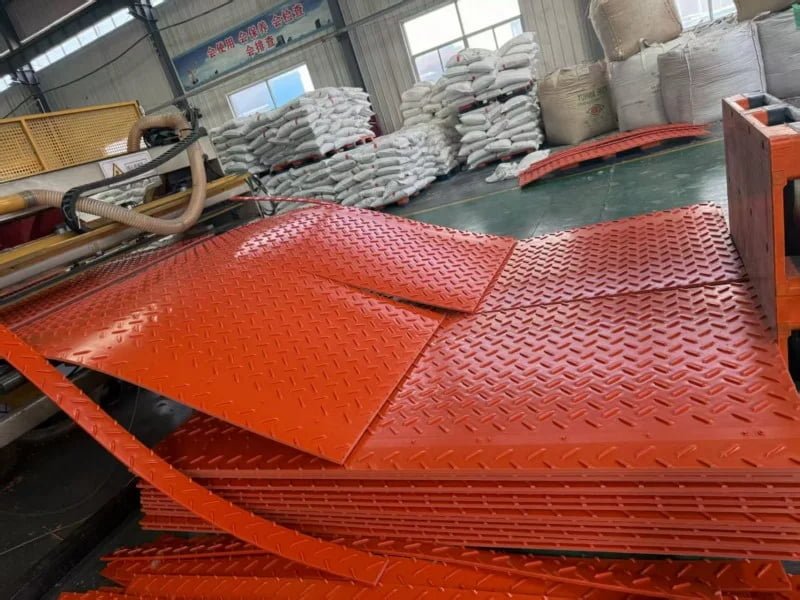

Color and outdoor specification

Panel width and layout

Pebble texture

Honeycomb texture

Grouped diamond texture

Curved bar texture

Oval and dot texture

X texture

Diagonal rib texture

Rounded rectangle texture

Teardrop texture

Need a Custom Solution?

Case Studies

100 Mats First, Sold Out in One Month: How a North American Distributor Tested BKM HDPE Ground Protection Mats

14 Days Saved in Calgary: How BKM Gray HDPE Mats Kept a Residential Project Moving Through Rain and Thaw

450 Mats for a 1,500 ft Temporary Road: How BKM Supported a Mississippi Riverbank Earthwork Project

600 Mats Delivered in 5 Days: How BKM Helped Protect a Music Festival in Daegu

Packaging

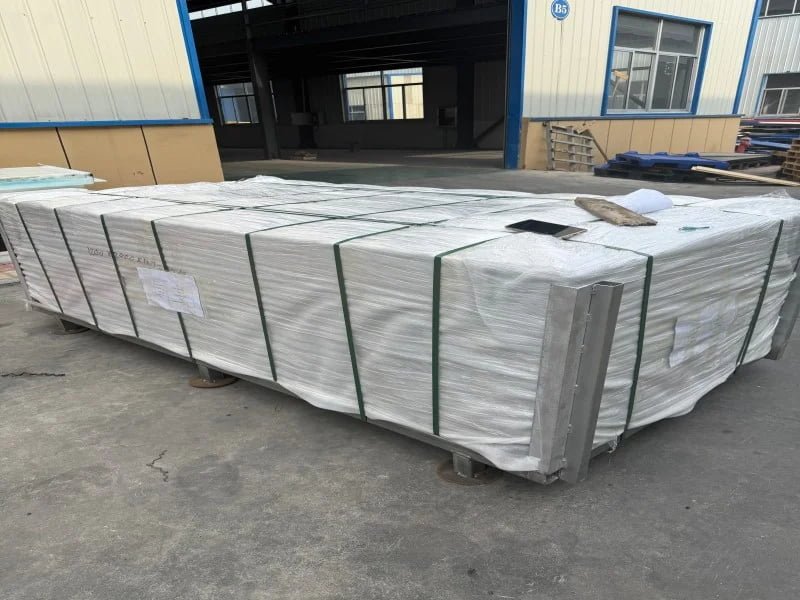

Wrapped panel bundles
